Sparco Seat Mounting Hardware & Spacer Kits

$12.00 USD
Kit

Save on Installation
Buy from Pit Garage. Save on installation at our shop. Get a quote →

Vehicle and mounting: For a Toyota GR Corolla bottom-mount seat installation, select the 50001 bottom-mount hardware kit with the correct 600 Series base and compatible slider. The side-mount and spacer options serve different mounting arrangements; choose the kit required by the actual seat and brackets.

Sparco seat hardware and spacer kits organize the fasteners for specific mounting methods. Choose the kit by its full part number: a side-mount bolt kit, bottom-mount bolt kit and spacer kit serve different purposes.

Specifications and Fitment

Brand / model Seat Mounting Hardware & Spacer Kits

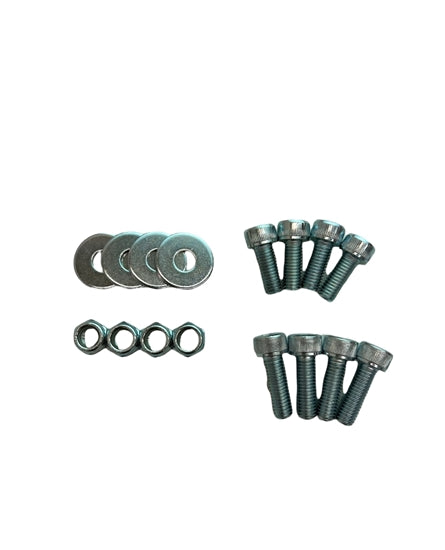

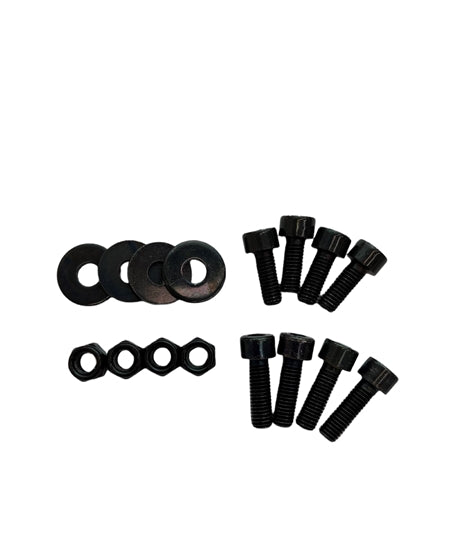

Bottom kit 50001ZS/ZN Four M8x1.25x25 mm bolts, four M8x1.25x20 mm bolts, four locking nuts and four washers

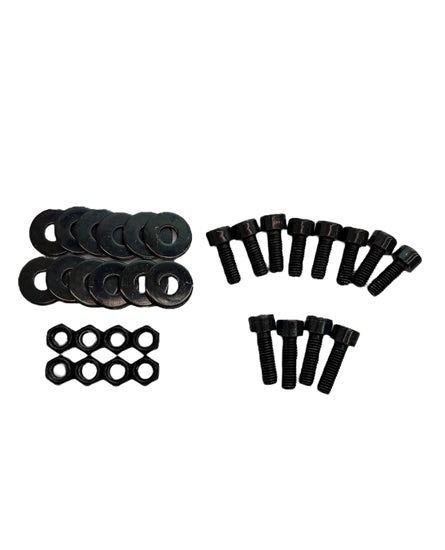

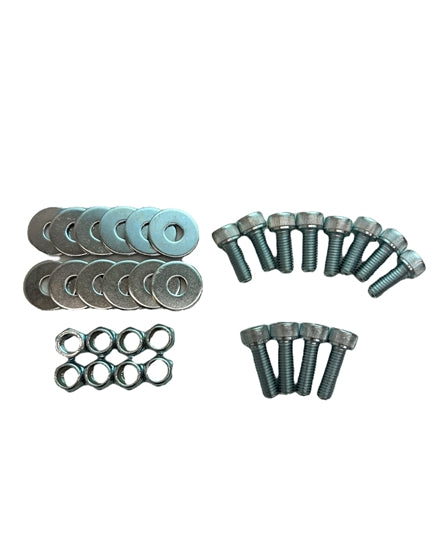

Side kit 50002ZS/ZN Four M8x1.25x25 mm bolts, eight M8x1.25x20 mm bolts, eight locking nuts and eight washers
Finish selection Silver-zinc and black-zinc versions use distinct suffixes
Spacer option 50003 is a separate spacer kit
Options and Manufacturer Part Numbers
SIDE MOUNT KIT SILVER ZINC 50002ZS
SIDE MOUNT KIT BLACK ZINC 50002ZN
SPACER KIT 50003
BOTTOM MOUNT KIT BLACK ZINC 50001ZN

Selection and Installation

Count the joints in the complete seat/base/slider arrangement before ordering. A spacer kit does not replace a bolt kit, and fastener length should be checked against the actual bracket stack.

Product FAQs

Does one selected hardware kit include every mounting option?
No. The selected SKU is one kit. Choose side-mount hardware, bottom-mount hardware or spacers for the installation rather than expecting all three in one package.
How do the bottom- and side-mount bolt kits differ?
50001 includes four 25 mm bolts, four 20 mm bolts, four locking nuts and four washers. 50002 includes four 25 mm bolts, eight 20 mm bolts, eight locking nuts and eight washers. The listed bolts are M8 x 1.25.
Is 50003 a bolt kit?
50003 is the spacer selection, separate from the bottom- and side-mount hardware kits. It is the spacer referenced for the Pro 2000 bottom-mount arrangement.

For help planning this seat installation, contact Pit Garage in the Los Angeles area with your vehicle and intended use.
