Pit Garage Spec Nitron NTR R3 Coilover Kit - Honda S2000
Pit Garage Spec Nitron NTR R3 Coilover Kit - Honda S2000 - Fast Road (FRS) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability

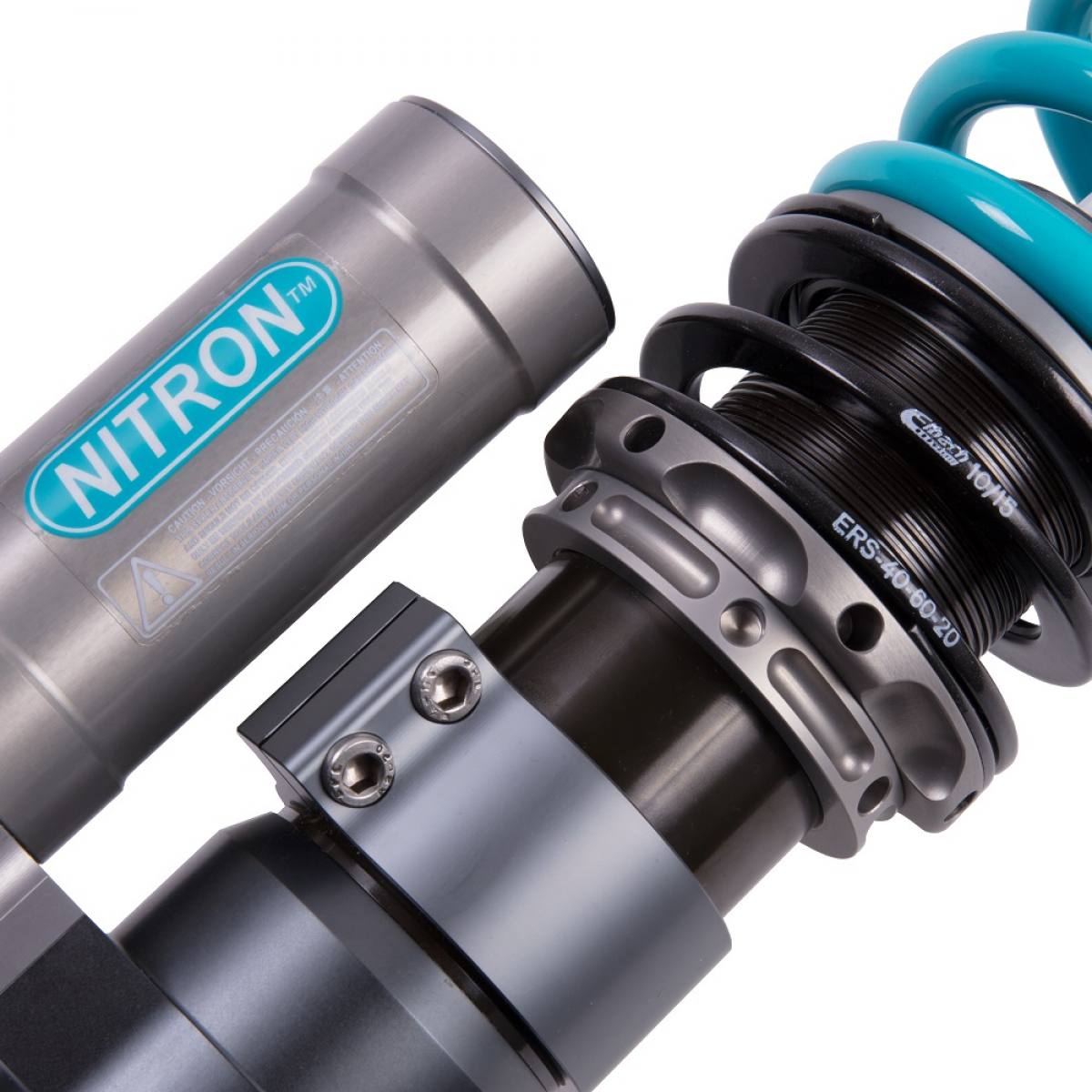

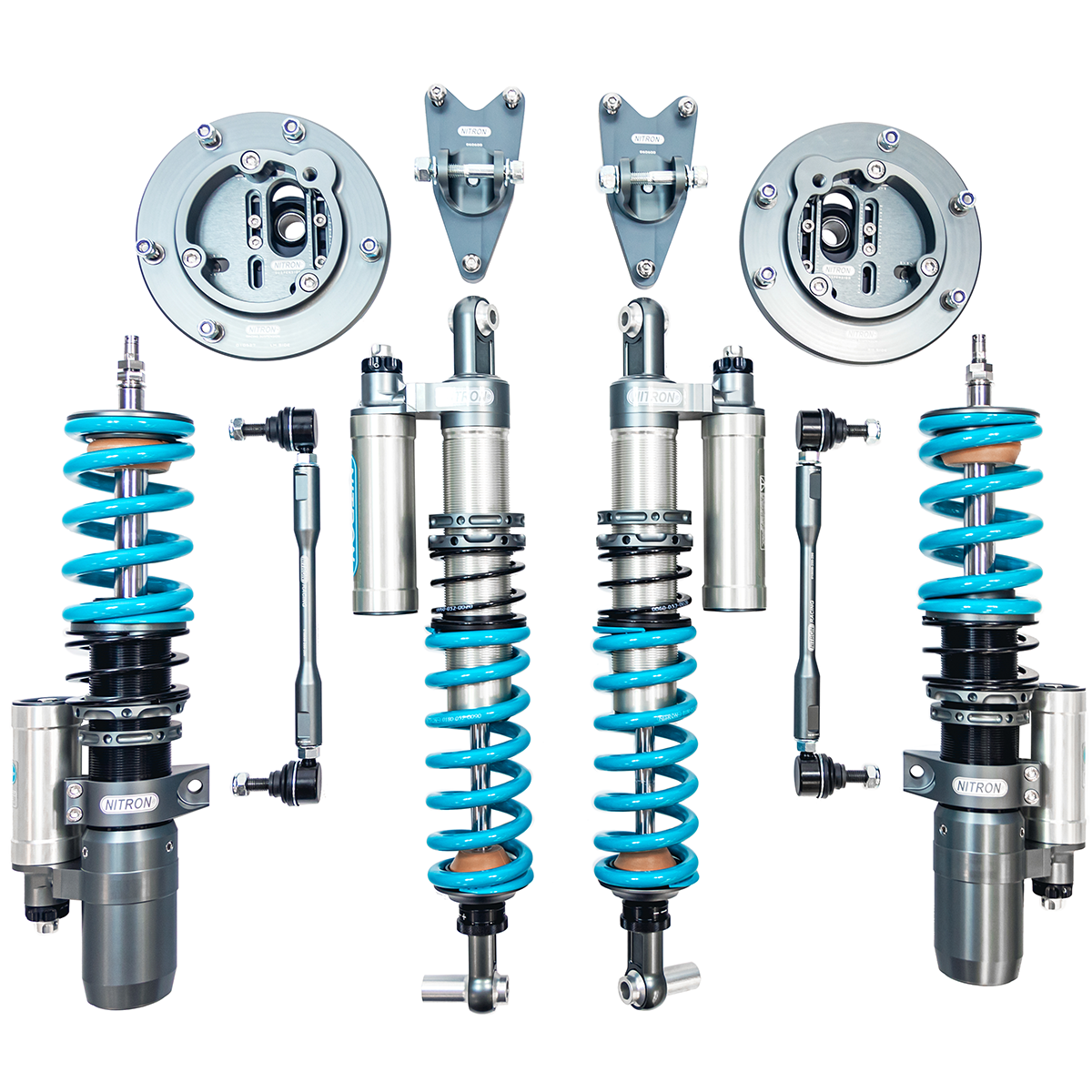

The Nitron NTR R3 coilover kit for Honda S2000 provides three-way adjustable suspension for detailed road and track setup.
Key features and intended use
- Three independent damping adjustments provide more setup control.
- Compression and rebound can be tuned separately for the selected springs and tires.
- An external-reservoir specification provides a distinct packaging and adjustment arrangement.
Application and specifications
| Vehicle application | Honda S2000 |
|---|---|
| Manufacturer | Nitron |
| Supplier base part number | NTCHO010R3 |
| Kit family | NTR R3 |
| Damping control | Independent rebound, high-speed compression and low-speed compression adjustment |
| Front axle lift | Not included |
| Rear suspension layout | OEM |
| Reservoir arrangement | Piggyback |
| Droplinks included | No |
How to choose the setup
Choose the spring package around tire grip, track frequency and the intended ride quality. FRS means Fast Road Specification; TDS means Track Day Specification. These are spring/build choices, not electronic driving modes. The supplier base part number alone does not capture every ordered configuration.
FAL compatibility: the FAL kit will fit this application. Nitron has limited application information. FAL is not included with this suspension kit.
Installation and ordering
Provide the model year, chassis, factory suspension equipment and intended use when specifying the order. Have the installer verify the mounts, usable travel, wheel clearance and any required electronic hardware. Confirm lead time for the selected configuration; catalog availability is not a promise of immediate dispatch.
Compare related Nitron products
Product FAQs
Do high- and low-speed compression refer to road speed?
No. They refer to damper shaft movement speed. A sharp suspension input can involve high shaft speed even at a low vehicle speed.
How should I approach the first damping adjustments?
Establish a suitable baseline, change one setting at a time and record the result on a repeatable route or session. Keep the tire and vehicle setup consistent while assessing changes.
What S2000 details help establish the correct build?
Provide the model year, chassis specification, tire setup and existing suspension hardware.
Ask Pit Garage about this Nitron application. Pit Garage is an automotive repair and race-preparation shop in the Los Angeles area.
