SPL Parts BMW E46 M3 Adjustable Front Sway Bar Endlinks
SPL Parts BMW E46 M3 Adjustable Front Sway Bar Endlinks is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability

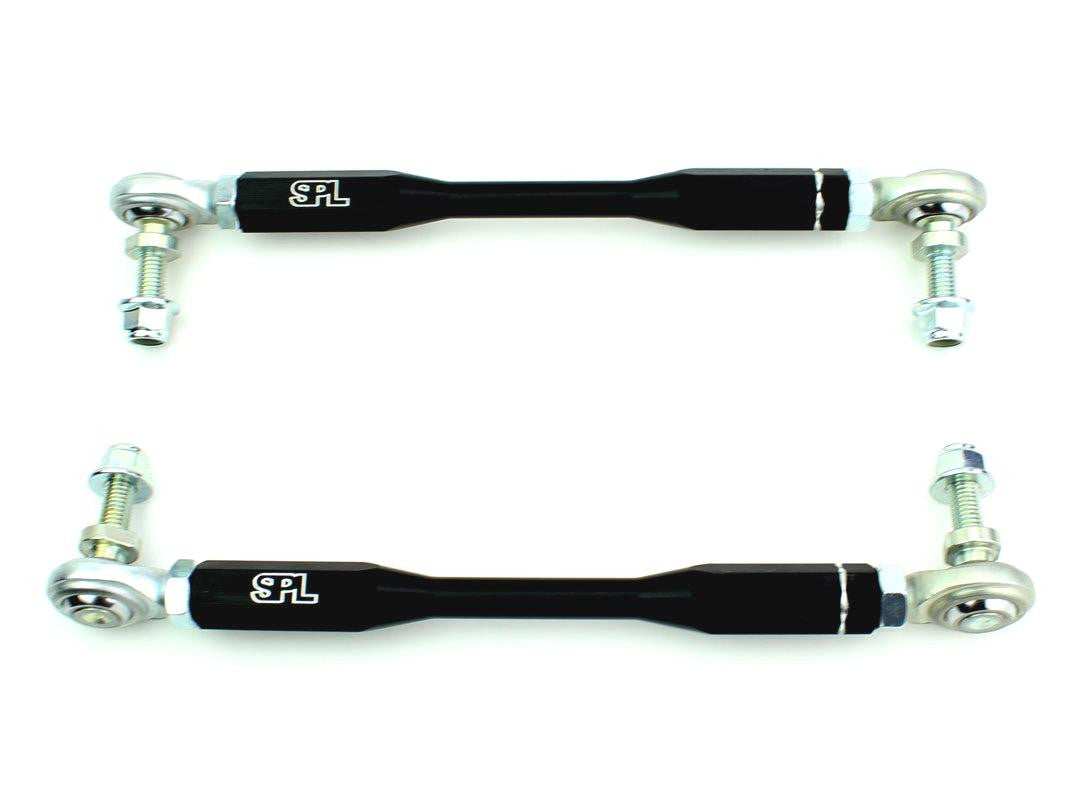

SPL Parts BMW E46 M3 Adjustable Front Sway Bar Endlinks (SPL FE E46) is designed for front sway bar preload adjustment on the listed BMW E46 M3 applications.
Adjustable front anti-roll bar links use PTFE-lined FK bearings and high-misalignment studs to accommodate sway bar articulation.
Specifications and fitment
| Brand | SPL Parts |
|---|---|
| Manufacturer part number | SPL FE E46 |
| Application | BMW E46 M3 |
| Function | Front sway bar preload adjustment |
| Supplied as | Pair |
Setup and ordering notes
With aftermarket struts or coilovers, verify a 9.9–11.4 inch mounting distance between the sway bar and shock mount. Chassis fitment alone does not establish the correct link length.
Product FAQs
How do adjustable sway bar endlinks differ from a sway bar?
The endlinks connect the sway bar to the suspension. Adjusting their length helps set bar position and remove unwanted preload; the links do not replace the bar or directly change its diameter.
How do I choose front endlinks for coilovers?
Check the distance between mounting points and the installed sway bar angle. A coilover can move the endlink tab, so select a link that matches the required length and clearance, rather than choosing only by chassis name.
Explore related SPL components
Pit Garage is an automotive service and performance parts shop in the Los Angeles area. Contact us with your chassis, drivetrain, ride height and installed suspension if you need help selecting the correct SPL part.
