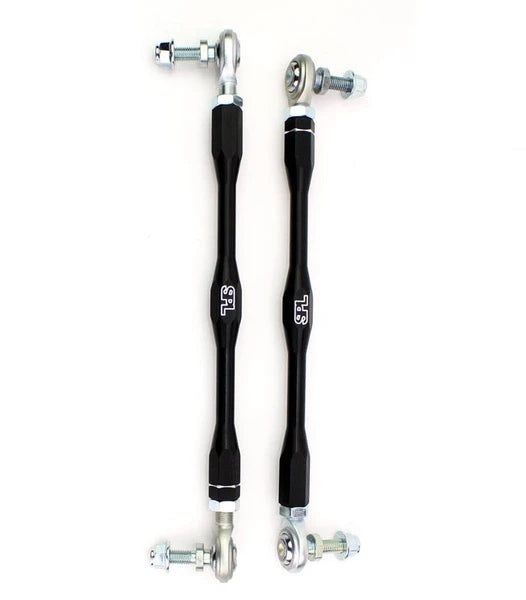

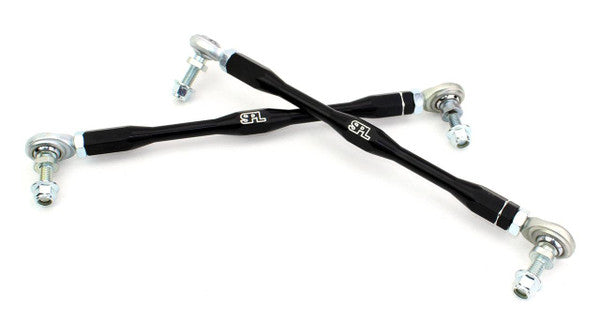

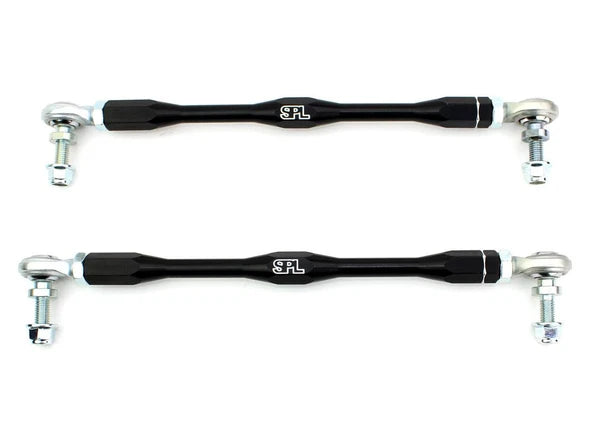

SPL Parts BMW E90 / E92 M3 / G8X Front Sway Bar Endlinks — 12.9–14.4 in
SPL Parts BMW E90 / E92 M3 / G8X Front Sway Bar Endlinks — 12.9–14.4 in is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
SPL Parts BMW E90 / E92 M3 / G8X Front Sway Bar Endlinks — 12.9–14.4 in (SPL FE E9M) is designed for front sway bar preload adjustment on the listed BMW E90 / E92 M3; BMW G87 M2 / G80 M3 / G82 M4 applications.
These longer front sway bar endlinks cover the listed E9X M and G8X M applications, with a mounting-distance range distinct from SPL FE F8X.
Specifications and fitment
| Brand | SPL Parts |
|---|---|
| Manufacturer part number | SPL FE E9M |
| Application | BMW E90 / E92 M3; BMW G87 M2 / G80 M3 / G82 M4 |
| Function | Front sway bar preload adjustment |
| Supplied as | Pair |
Setup and ordering notes
Verify a 12.9–14.4 inch mounting distance between the sway bar and shock mount. This is a different length range from SPL FE F8X.
Product FAQs
How do adjustable sway bar endlinks differ from a sway bar?
The endlinks connect the sway bar to the suspension. Adjusting their length helps set bar position and remove unwanted preload; the links do not replace the bar or directly change its diameter.
How is FE E9M different from FE F8X front endlinks?
FE E9M covers a 12.9–14.4 inch mounting distance, while FE F8X covers 11.4–12.9 inches. The manufacturer lists some shared chassis applications, but the correct link still depends on the installed mounting-point distance.
Explore related SPL components
Pit Garage is an automotive service and performance parts shop in the Los Angeles area. Contact us with your chassis, drivetrain, ride height and installed suspension if you need help selecting the correct SPL part.
