CSF 7226 Toyota GR Supra / BMW Engine Coolant Radiator
CSF 7226 Toyota GR Supra / BMW Engine Coolant Radiator is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability

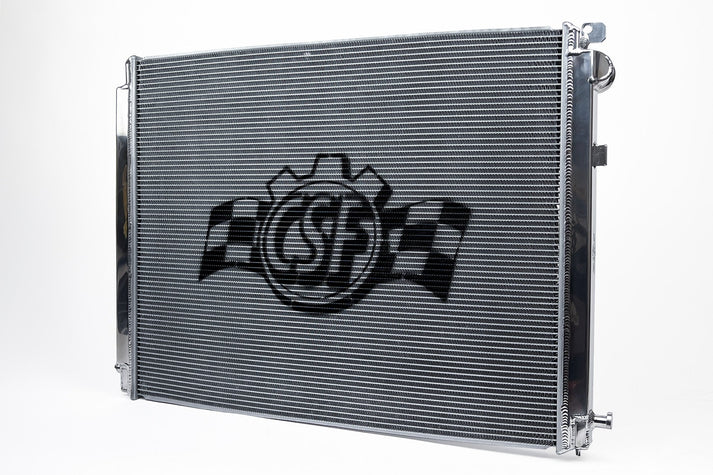

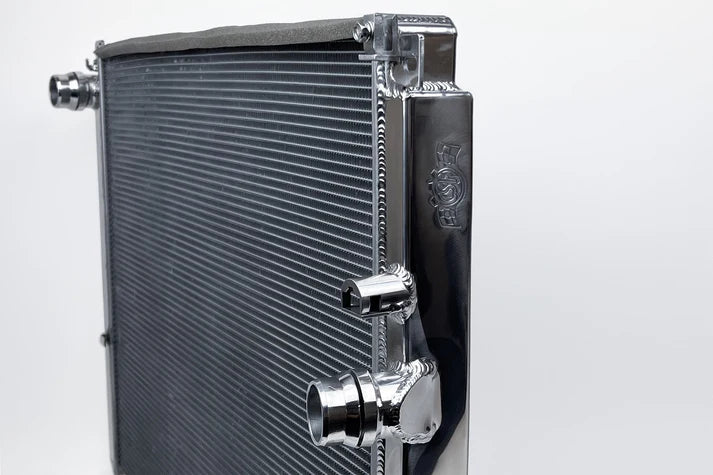

The CSF 7226 is the main engine coolant radiator for the listed Toyota GR Supra and BMW applications. A two-row, 42mm B-Tube core and 5mm multi-louvered fins are housed in a TIG-welded aluminum assembly.
This radiator addresses engine coolant heat rejection. It should not be confused with a front charge-air heat exchanger or an auxiliary side radiator, even when those products serve some of the same vehicles.
Specifications
| Specification | Details |
|---|---|
| Part number / family | 7226 |
| Cooling circuit | Engine coolant |
| Core | Two-row, 42mm B-Tube |
| Fin height | 5mm |
| Construction | TIG-welded aluminum |
| Finish | Mirror polished |
| Selection | Use the model, engine and year applications below |
Fitment and configuration: The application list includes multiple engines and models. Match the exact vehicle rather than treating all B48/B58 BMWs as one radiator fitment.
Vehicle applications
| Years | Vehicle | Engine / transmission | Notes |
|---|---|---|---|
| 2019-2021 | BMW G20 330i | Turbocharged 2.0L L4 | — |
| 2019-2021 | BMW G20 330i xDrive | Turbocharged 2.0L L4 | — |
| 2019-2026 | BMW G29 Z4 M40i | Turbocharged 3.0L L6 | — |
| 2020-2021 | BMW G29 Z4 M40i First Edition | Turbocharged 3.0L L6 | — |
| 2020-2021 | BMW G29 Z4 sDrive M40i | Turbocharged 3.0L L6 | — |
| 2019-2026 | BMW G29 Z4 sDrive30i | Turbocharged 2.0L L4 | — |
| 2024 | Toyota GR Supra 45th Anniversary Edition | Turbocharged 3.0L L6 | — |
| 2021-2022 | Toyota GR Supra A91 Edition | Turbocharged 3.0L L6 | — |
| 2023 | Toyota GR Supra A91-MT Edition | Turbocharged 3.0L L6 | — |
| 2020-2026 | Toyota GR Supra | Turbocharged 3.0L L6 | — |
| 2021-2023 | Toyota GR Supra | Turbocharged 3.0L L6 | — |
| 2020 | Toyota GR Supra Launch Edition | Turbocharged 3.0L L6 | — |
| 2020-2026 | Toyota GR Supra Premium | Turbocharged 3.0L L6 | — |
| 2021-2023 | Toyota GR Supra Premium | Turbocharged 3.0L L6 | — |
| 2024 | Toyota GR Supra Premium 45th Anniversary Edition | Turbocharged 3.0L L6 | — |
| 2026 | Toyota GR Supra MkV Final Edition | Turbocharged 3.0L L6 | — |
| 2021-2024 | Toyota GR Supra | Turbocharged 2.0L L4 | — |
Product FAQs
Is this a charge-air heat exchanger?
No. The 7226 carries engine coolant. A charge-air heat exchanger belongs to the separate low-temperature cooling circuit.
Will it fit every B58 BMW?
No. Use the specific applications below. A common engine family does not establish radiator mounting and connection compatibility.
Are auxiliary radiators included?
No. This listing is for the main radiator; side auxiliary coolers are separate products.
Related CSF cooling products
- CSF 8154 Toyota GR Supra / BMW G-Series Front Heat Exchanger
- CSF 8179 Toyota GR Supra / BMW G-Series Auxiliary Radiator
Pit Garage is an automotive service and performance parts shop in the Los Angeles area. Ask Pit Garage about selecting this cooling component for your engine, transmission and installed equipment.
