CSF 8041 BMW E9X M3 Power Steering Cooler
CSF 8041 BMW E9X M3 Power Steering Cooler is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability

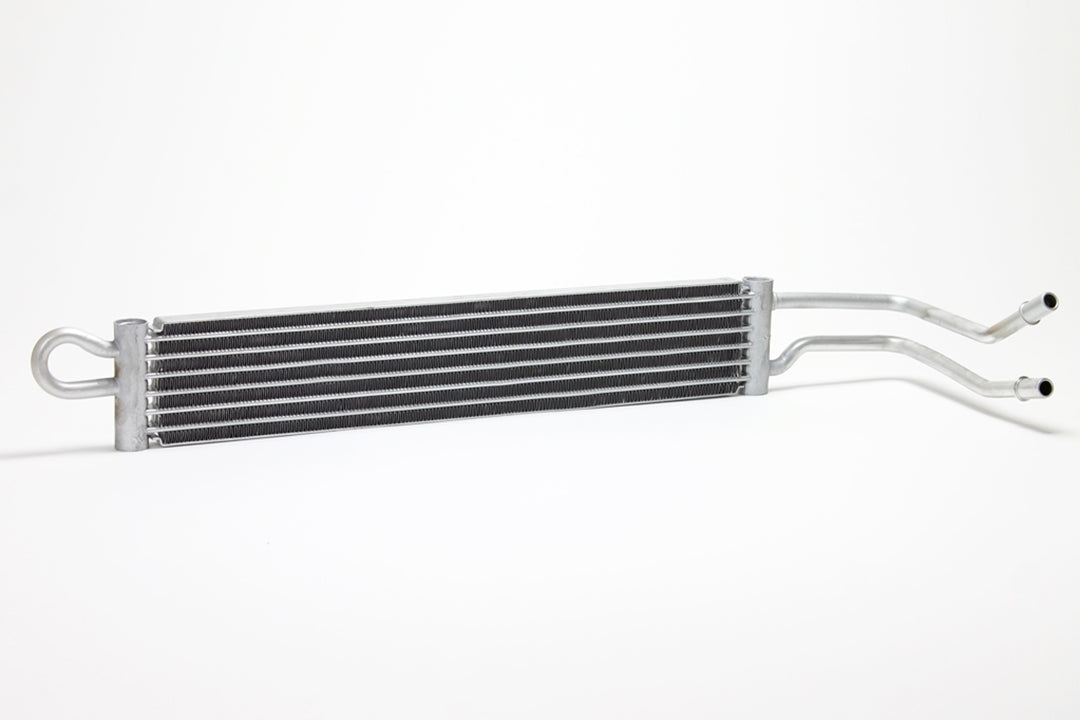

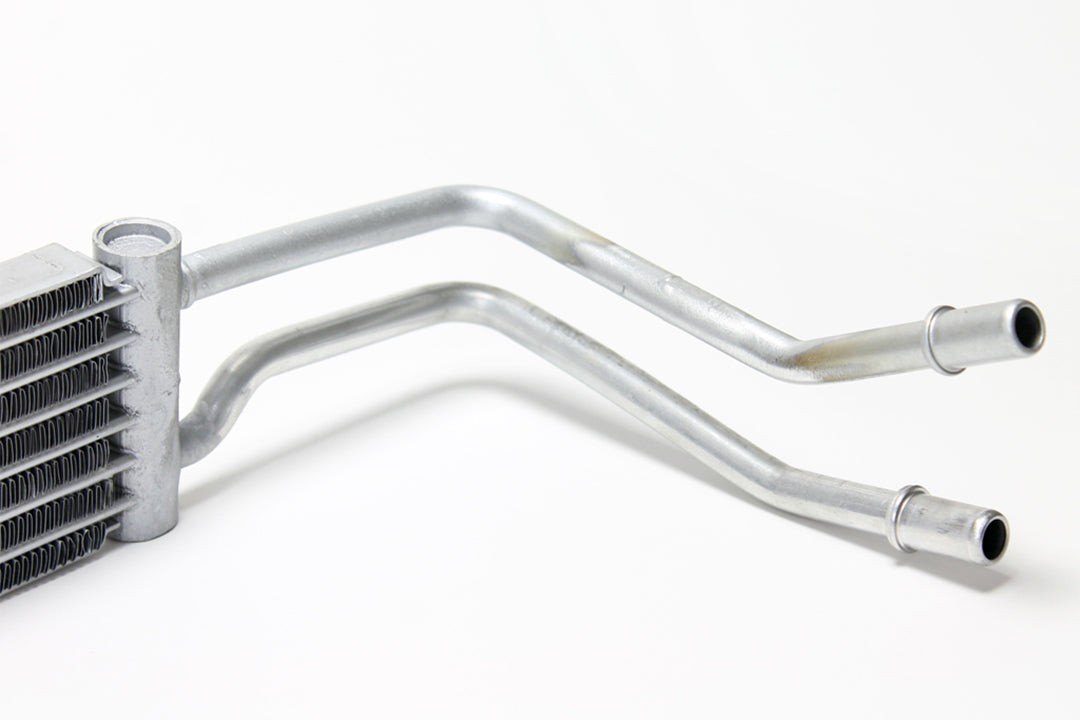

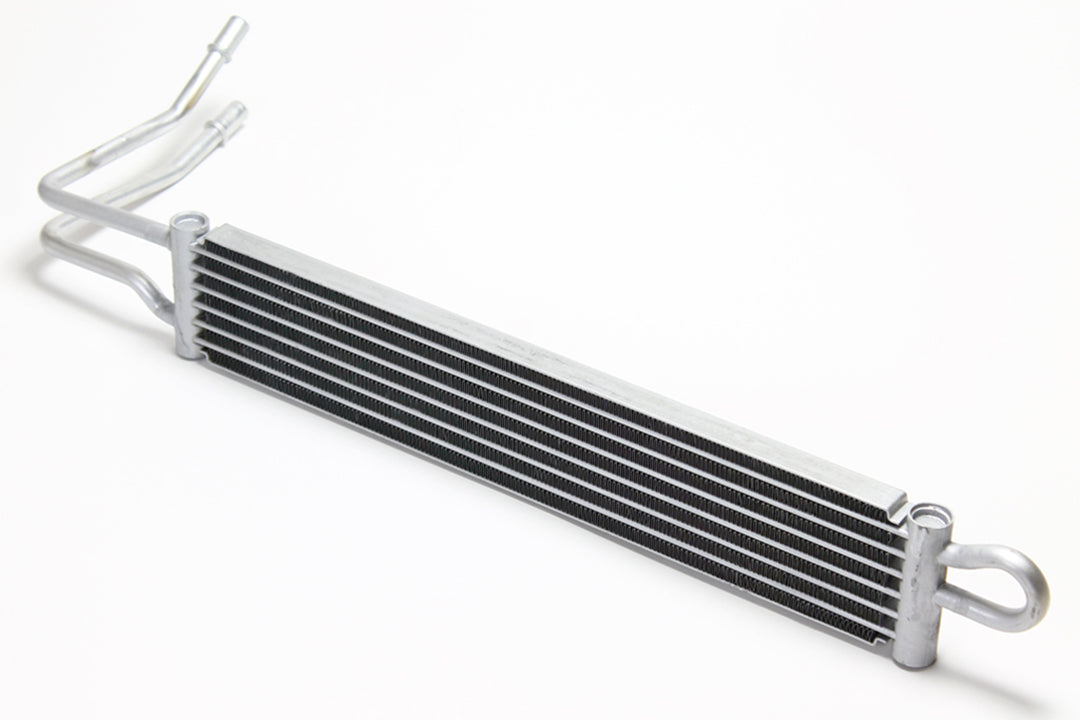

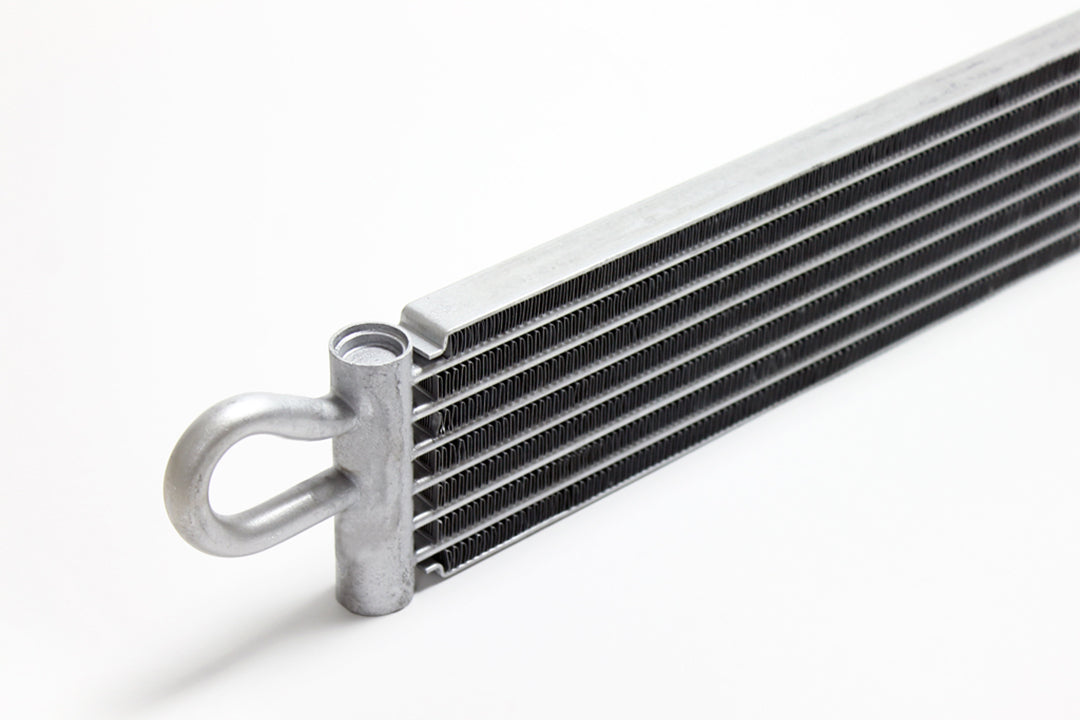

The CSF 8041 upgrades the hydraulic power steering cooling circuit on the listed BMW applications, including the E9X M3. Its six-row, dual-pass aluminum core uses 18mm four-channel microtubes.
The cooler extends upward rather than occupying more space below the original unit. This layout is useful when planning clearance around additional cooling components, while remaining a power steering cooler rather than an engine oil or transmission cooler.
Specifications
| Specification | Details |
|---|---|
| Part number / family | 8041 |
| Cooling circuit | Hydraulic power steering |
| Core | Six-row plate-type aluminum |
| Tube design | 18mm, four-channel microtube |
| Flow | Dual-pass |
| Assembly | Controlled-atmosphere brazed |
| Layout | Additional core height extends upward |
| OEM reference | 17112282716 |
Fitment and configuration: Verify the hydraulic steering cooler application and original part reference. Do not apply this to a car merely because it shares an E9X chassis designation.
Vehicle applications
| Years | Vehicle | Engine / transmission | Notes |
|---|---|---|---|
| 2008-2013 | BMW E82/E88 128i | 3L L6 | — |
| 2006 | BMW E9X 325i | 3L L6 | — |
| 2006 | BMW E9X 325xi | 3L L6 | — |
| 2007-2013 | BMW E9X 328i | 3L L6 | — |
| 2009-2013 | BMW E9X 328i xDrive | 3L L6 | — |
| 2007-2008 | BMW E9X 328xi | 3L L6 | — |
| 2006 | BMW E9X 330i | 3L L6 | — |
| 2006 | BMW E9X 330xi | 3L L6 | — |
| 2008-2013 | BMW E9X M3 | 4L V8 | — |
Product FAQs
Does this cool engine oil?
No. The 8041 serves the hydraulic power steering fluid circuit.
Why does the taller layout matter?
CSF positions the additional height upward, leaving the area below available for other cooling components. Clearance must still be checked for the actual build.
Will it fit every BMW with hydraulic steering?
No. Use the listed applications and original cooler reference rather than steering-system type alone.
