CSF 8104 BMW F87 M2 N55 Engine Oil Cooler
CSF 8104 BMW F87 M2 N55 Engine Oil Cooler is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability

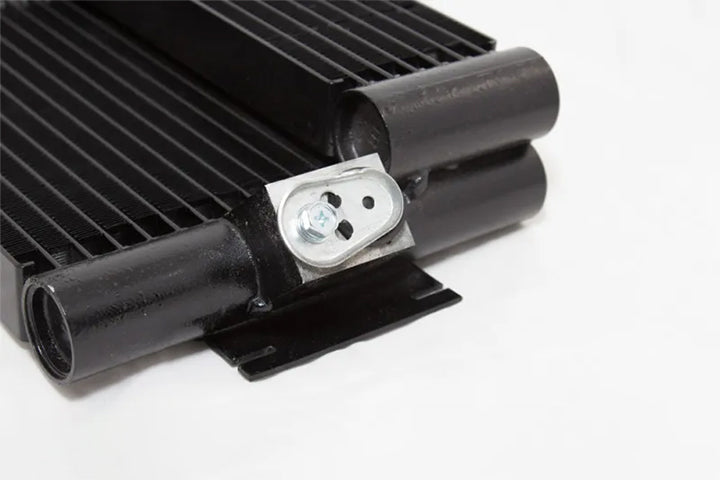

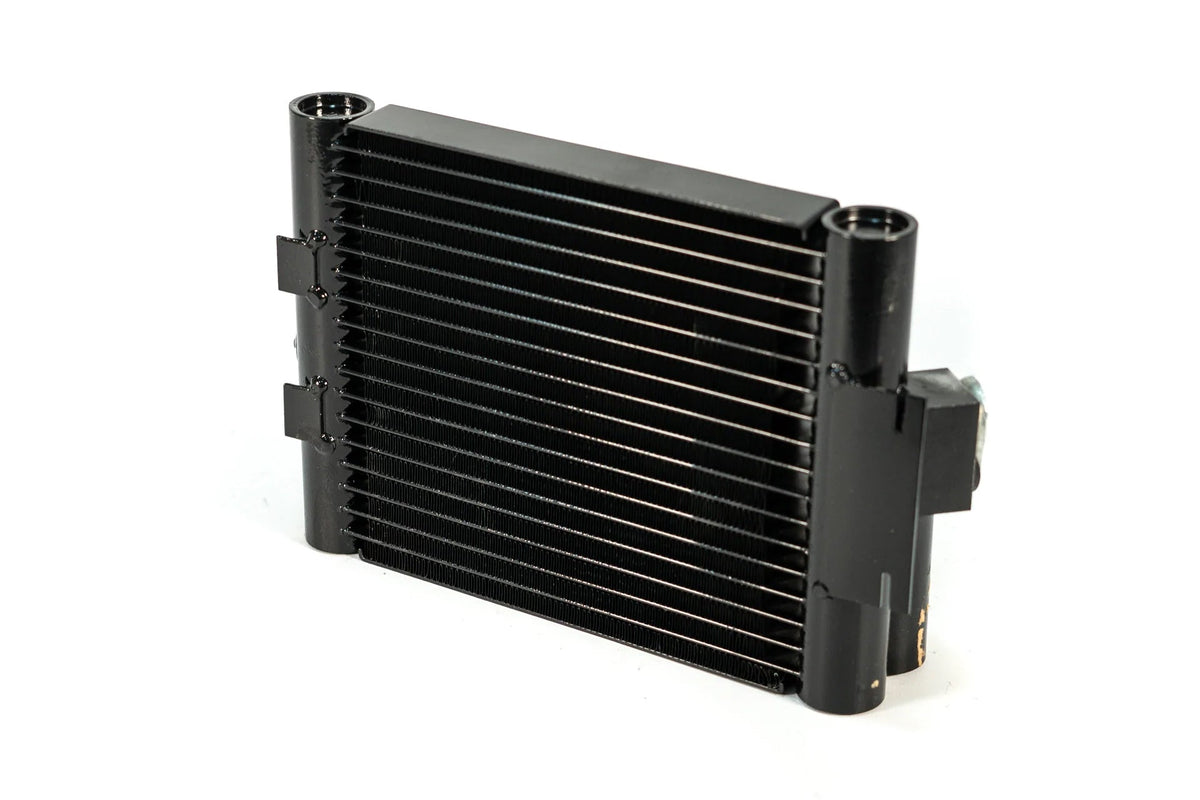

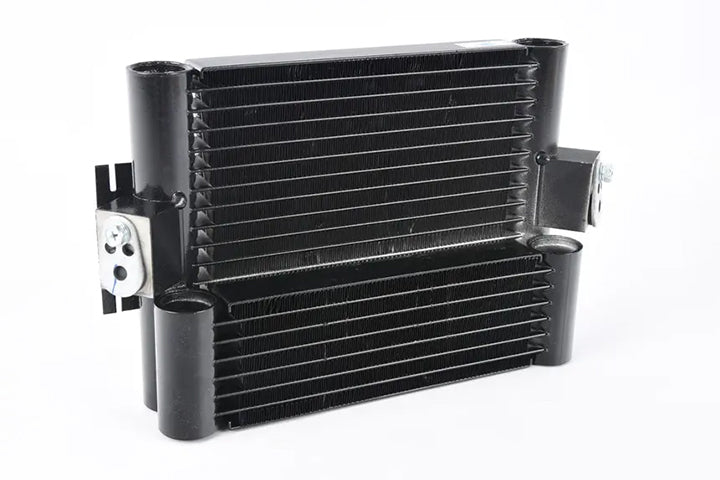

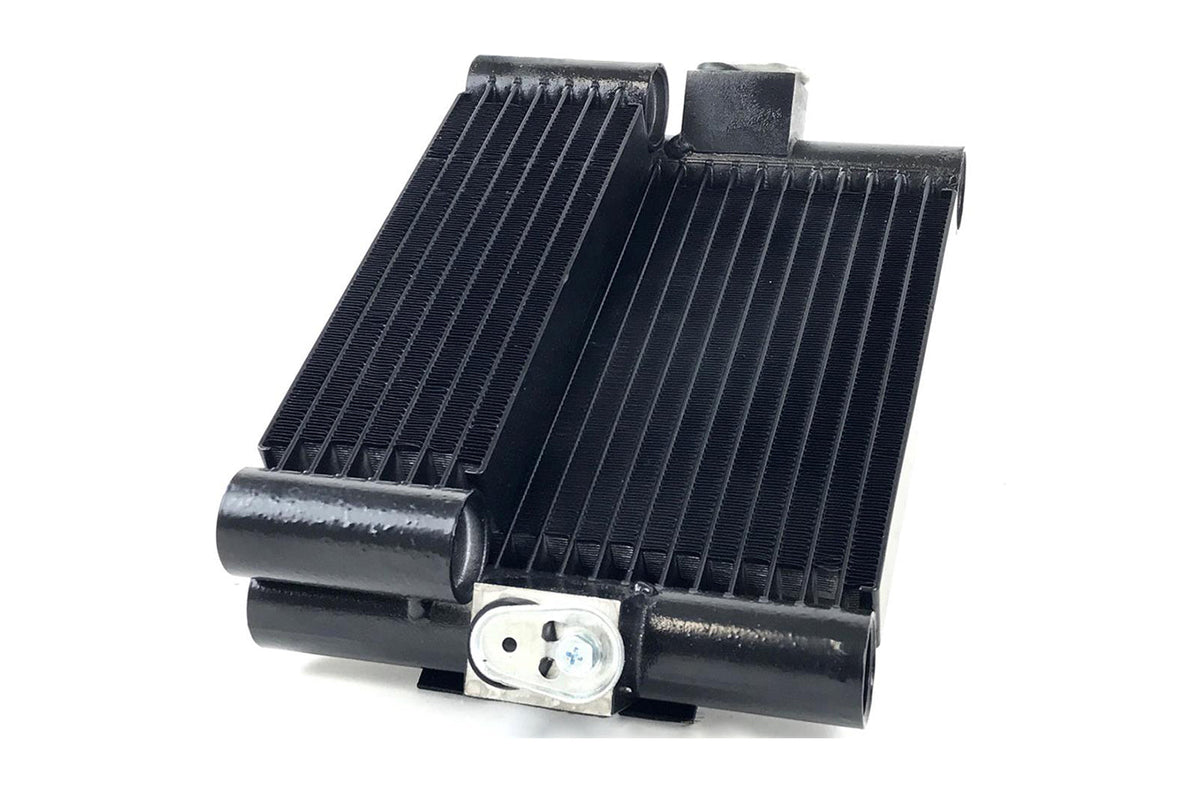

The CSF 8104 upgrades engine oil cooling on the 2016–2018 N55-powered BMW F87 M2. Two aluminum microtube cores operate in series, adding rear cooling rows behind the main front core.
The design retains the original oil-line connections, mounting and shroud arrangement. CSF specifies an additional half-quart of cooler oil capacity; the final engine oil level still needs to be established correctly after filling the complete system.
Specifications
| Specification | Details |
|---|---|
| Part number / family | 8104 |
| Cooling circuit | Engine oil |
| Engine | BMW N55, original F87 M2 |
| Core arrangement | Two cores in series |
| Tube construction | 26mm aluminum microtube |
| Front core | 17 cooling tubes |
| Rear core | Six additional rows |
| Additional oil capacity | 0.5 US quart |
| Connections | OEM oil-line arrangement |
Fitment and configuration: Not the S55-powered M2 Competition oil cooler. Match the engine, rather than choosing by the F87 code alone.
Vehicle applications
| Years | Vehicle | Engine / transmission | Notes |
|---|---|---|---|
| 2016-2018 | BMW F87 M2 | Turbocharged 3L L6 | — |
Product FAQs
Does this fit the M2 Competition?
No. The documented application is the earlier N55 M2.
Does it replace the DCT cooler?
No. This is an engine oil cooler; the N55 M2 DCT cooler is a separate component.
Should I simply add half a quart to a normal oil fill?
The added cooler capacity is a component specification. Establish the final engine oil level using the vehicle’s normal level-check procedure after the system is filled.
Pit Garage is an automotive service and performance parts shop in the Los Angeles area. Ask Pit Garage about selecting this cooling component for your engine, transmission and installed equipment.
