Pit Garage Spec Nitron elec-TRON R3 Coilover Kit - Toyota GR Supra A90/A91
Pit Garage Spec Nitron elec-TRON R3 Coilover Kit - Toyota GR Supra A90/A91 - Fast Road (FRS) / No add-on is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability

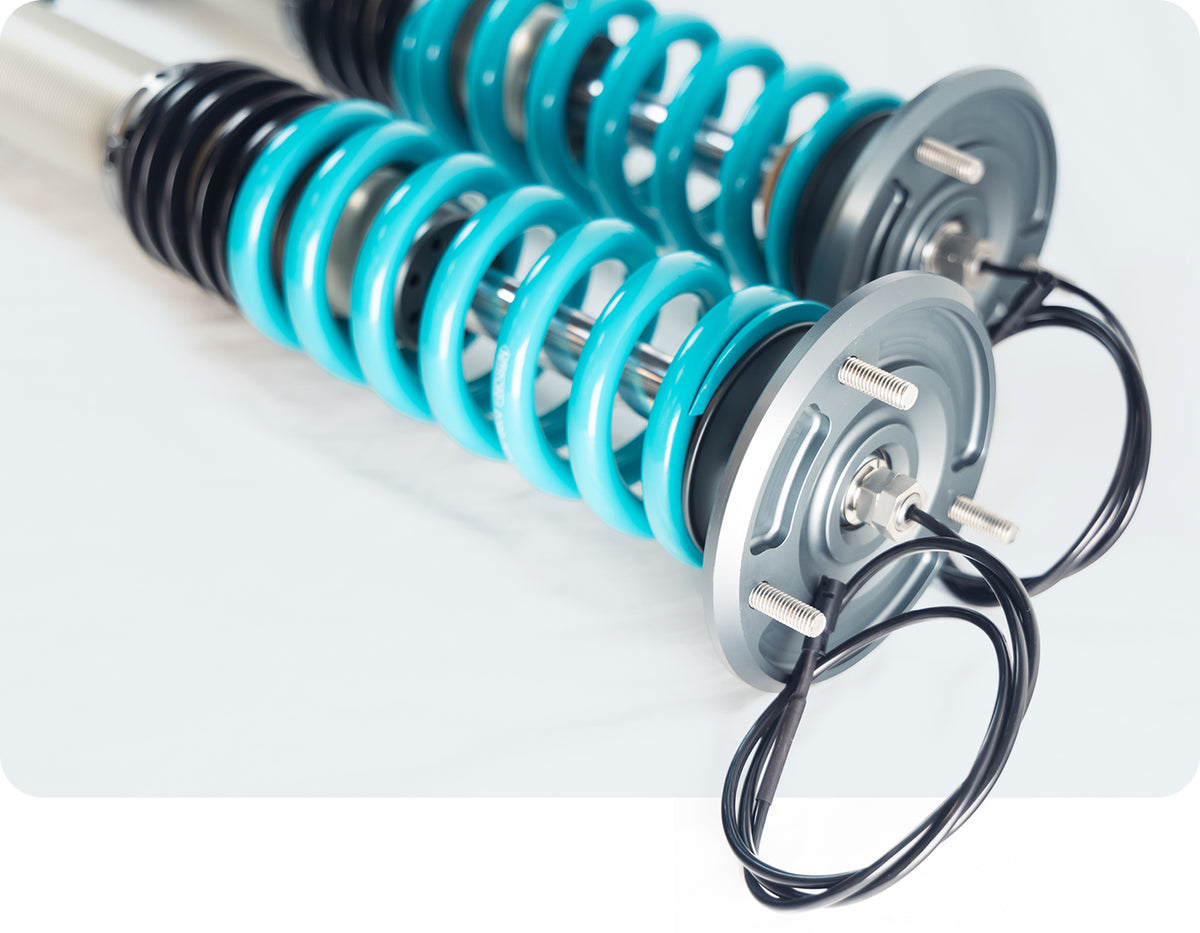

The Nitron elec-TRON R3 coilover kit for Toyota GR Supra A90/A91 provides electronically controlled suspension.
Key features and intended use
- Electronic damper control with separate manual high- and low-speed compression adjustment.
- Vehicle-specific spring and mounting configuration selected for the intended installation.
- An electronic suspension option distinct from a passive kit with an EDC delete module.
Application and specifications
| Vehicle application | Toyota GR Supra A90/A91 |
|---|---|
| Manufacturer | Nitron |
| Supplier base part number | NTCTO013ER3 |
| Kit family | elec-TRON R3 |
| Damping control | Electronic damper control with separate manual high- and low-speed compression adjustment |
| Front axle lift | Not included |
| Rear suspension layout | Divorced |
| Reservoir arrangement | Hose or piggyback front/Hose rear |
| Droplinks included | No |
| Included electronics | Nitron DCU, wiring harness and switch |
Hose Dry Break: Optional: +$548 per pair. Select above to add.
How to choose the setup
Choose the spring package around tire grip, track frequency and the intended ride quality. FRS means Fast Road Specification; TDS means Track Day Specification. These are spring/build choices, not electronic driving modes. The supplier base part number alone does not capture every ordered configuration.
Installation and ordering
Provide the model year, chassis, factory suspension equipment and intended use when specifying the order. Have the installer verify the mounts, usable travel, wheel clearance and any required electronic hardware. Confirm lead time for the selected configuration; catalog availability is not a promise of immediate dispatch.
Compare related Nitron products
- Nitron elec-TRON R3 with FAL Coilover Kit - Toyota GR Supra A90/A91
- Nitron elec-TRON R1 Coilover Kit - Toyota GR Supra A90/A91
Product FAQs
Will the Toyota GR Supra A90/A91 use its original damping controls?
This Supra kit is supplied with a Nitron DCU, wiring harness and switch for electronic damping control.
What is adjusted manually on elec-TRON R3?
The ER3 specification combines electronic damping control with independent manual high- and low-speed compression settings.
What Supra details should I provide when selecting the kit?
Provide the model year, A90/A91 application, steering side, factory damping equipment and any existing suspension changes.
