Pit Garage Spec Nitron elec-TRON R3 with FAL Coilover Kit - BMW F80 M3
Pit Garage Spec Nitron elec-TRON R3 with FAL Coilover Kit - BMW F80 M3 - Fast Road (FRS) / Coilover is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability

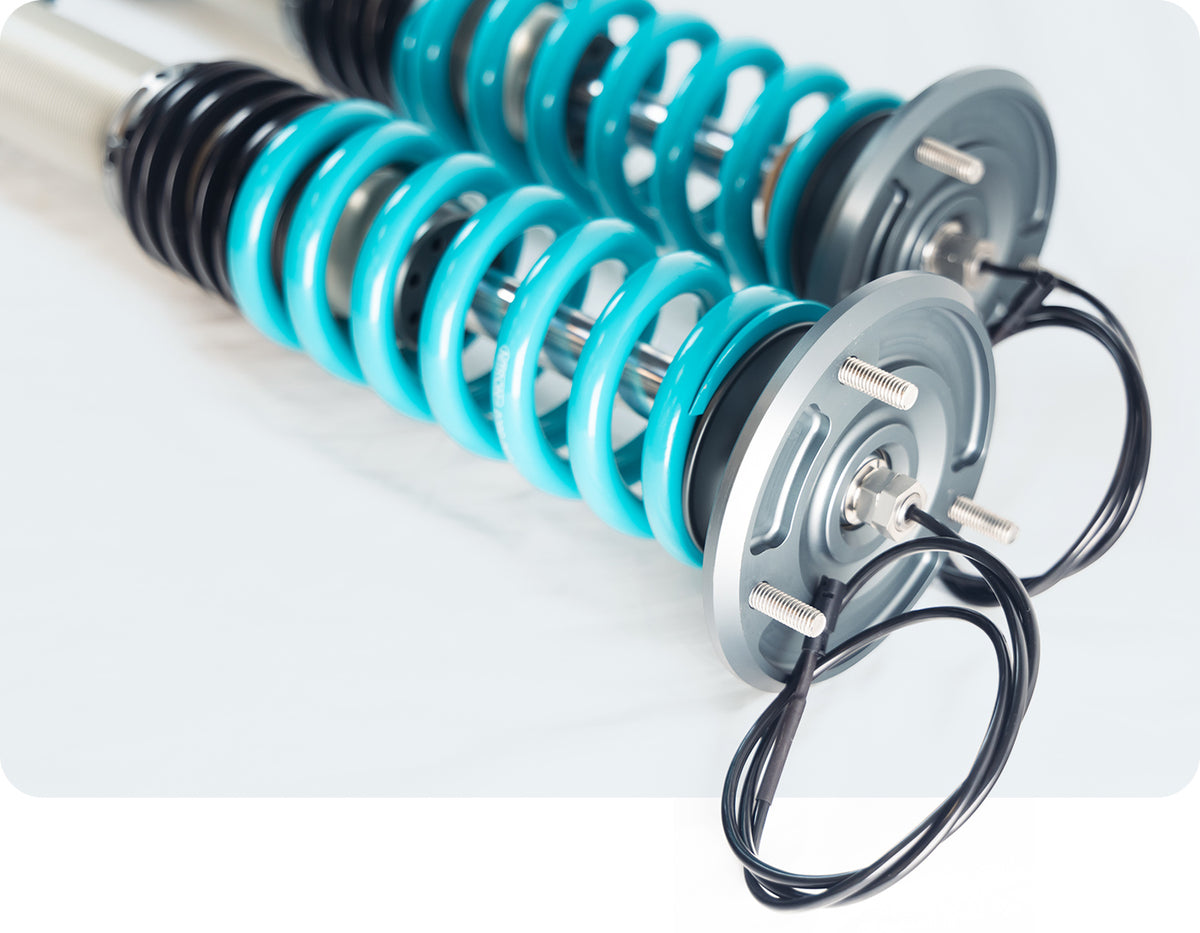

The Nitron elec-TRON R3 with FAL coilover kit for BMW F80 M3 provides electronically controlled suspension with a standalone front axle lift package for obstacle clearance.
Key features and intended use
- Adds temporary front axle lift for approaching driveways, ramps and similar obstacles.
- Electronic damper control with separate manual high- and low-speed compression adjustment.
- Vehicle-specific spring and mounting configuration selected for the intended installation.
- An electronic suspension option distinct from a passive kit with an EDC delete module.
Application and specifications
| Vehicle application | BMW F80 M3 |
|---|---|
| Manufacturer | Nitron |
| Supplier base part number | NTCBM027ER3 |
| Kit family | elec-TRON R3 |
| Damping control | Electronic damper control with separate manual high- and low-speed compression adjustment |
| Front axle lift | Included standalone FAL package; confirm installation |
| Rear suspension layout | Coilover or Divorced |
| Reservoir arrangement | Piggyback |
| Droplinks included | Yes |
| Electronic control | Compatible with factory BMW EDC; no additional products required |
Front axle lift: what this version adds
The standalone lift package is specified with lift cylinders, hydraulic lines, a pump, wiring loom and controller. The supplied application data states 25 mm lift at the shock. Vehicle ground-clearance change depends on the suspension geometry; it should not be presented as a guaranteed 25 mm rise at the bumper.
FAL assists with low-speed obstacle clearance. It does not make an unsuitable ride height, wheel clearance or suspension travel acceptable. Check hydraulic routing, component placement and clearance through suspension movement during installation.
How to choose the setup
Choose the spring package around tire grip, track frequency and the intended ride quality. FRS means Fast Road Specification; TDS means Track Day Specification. These are spring/build choices, not electronic driving modes. The supplier base part number alone does not capture every ordered configuration.
Coilover or divorced rear springs
A divorced rear arrangement keeps the spring separate from the damper. A rear coilover places the spring around the damper. Select the intended rear layout in the options; it is an installation choice rather than a cosmetic preference. Have the installer check the load path, mounts, spring clearance and travel for the selected arrangement.
Installation and ordering
Provide the model year, chassis, factory suspension equipment and intended use when specifying the order. Have the installer verify the mounts, usable travel, wheel clearance and any required electronic hardware. Confirm lead time for the selected configuration; catalog availability is not a promise of immediate dispatch.
Compare related Nitron products
- Nitron elec-TRON R3 Coilover Kit - BMW F80 M3
- Nitron elec-TRON R1 Coilover Kit - BMW F80 M3
- Nitron elec-TRON RoadSport Coilover Kit - BMW F80 M3
Product FAQs
Is this a complete elec-TRON kit or a standalone lift upgrade?
This listing is a suspension package with front axle lift. It is separate from the suspension-only listing and should not be ordered as a universal add-on for existing dampers.
Does front axle lift determine my normal driving height?
Choose the normal suspension height and alignment as part of the chassis setup. Temporary obstacle clearance is a separate requirement; establish the usable lift for the installed vehicle.
Will the BMW F80 M3 use its original damping controls?
This kit is compatible with the BMW EDC system, with no additional products required for EDC integration. The vehicle must have factory EDC.
What is adjusted manually on elec-TRON R3?
The ER3 specification combines electronic damping control with independent manual high- and low-speed compression settings.
What space should be planned for the FAL installation?
Review the pump, reservoir, hose and electrical routing locations with the installer before the work is scheduled.
