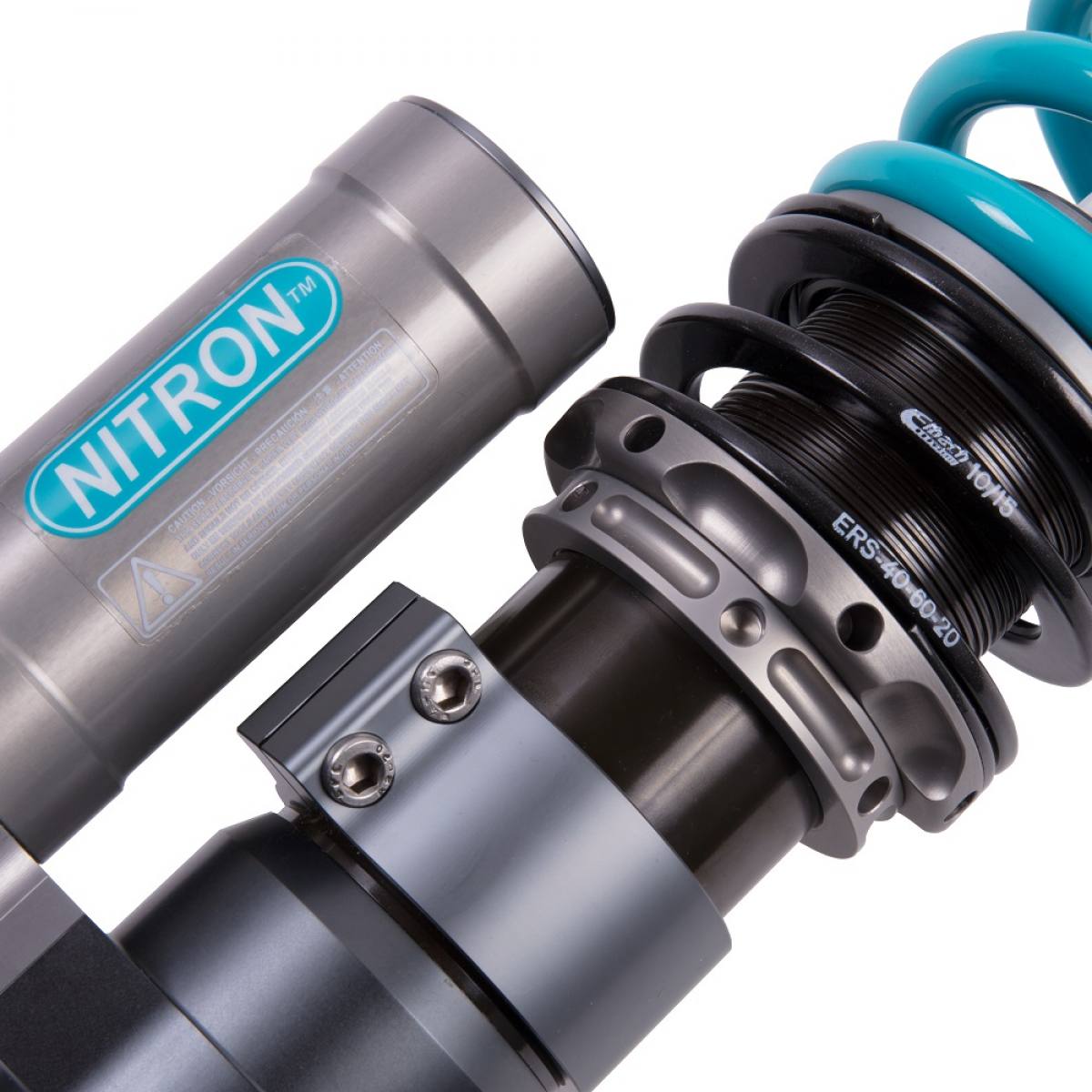

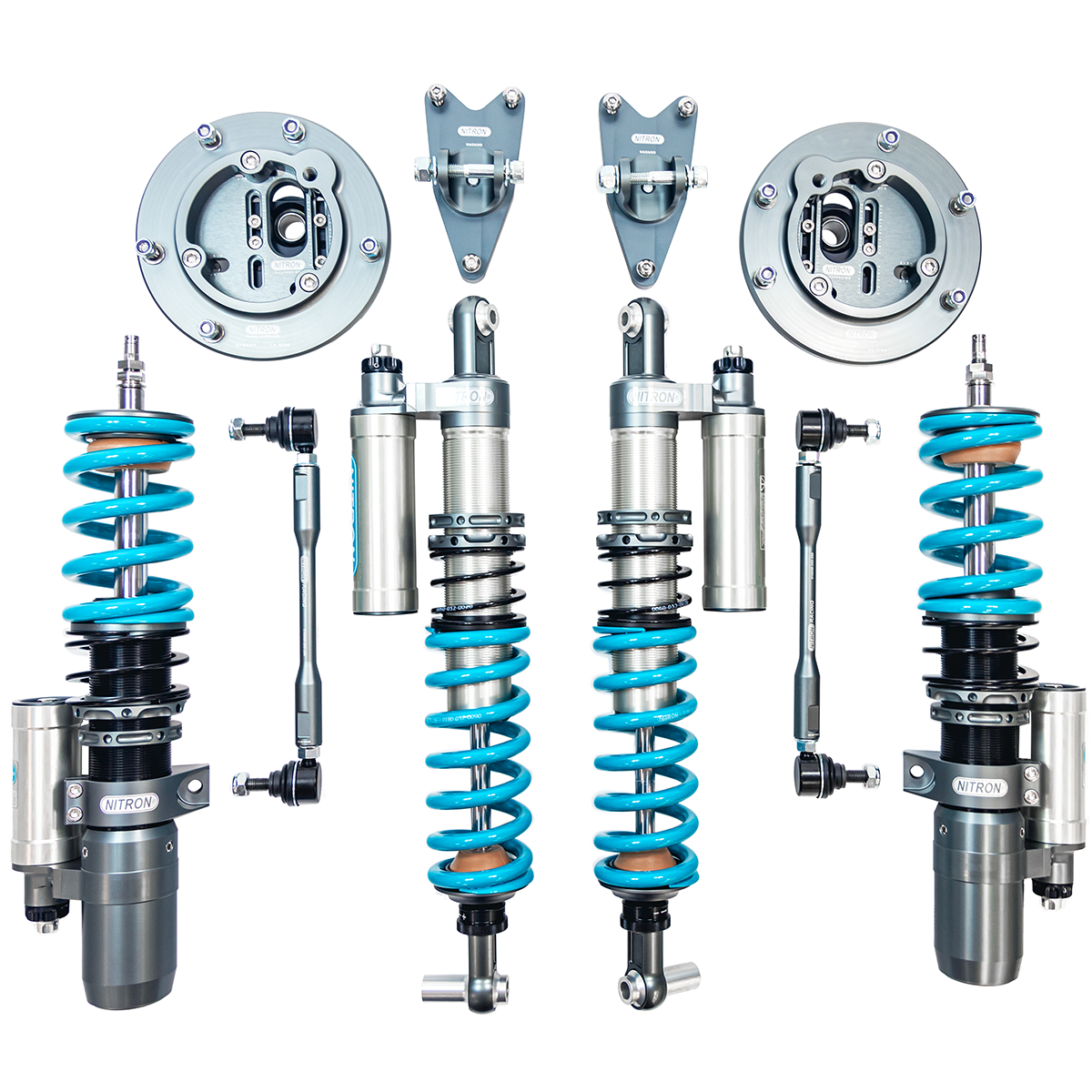

Pit Garage Spec Nitron NTR R3 3-Way Coilover Kit — BMW E46 M3
Pit Garage Spec Nitron NTR R3 3-Way Coilover Kit — BMW E46 M3 - Fast Road (FRS) / Coilover / No add-on is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
The Pit Garage Spec Nitron NTR R3 gives the BMW E46 M3 independent control of rebound, low-speed compression and high-speed compression. Built for road and track applications, it offers the adjustment range to develop your suspension setup around your tires, chassis and driving priorities.
Features
- Three independent damping controls for detailed suspension setup.
- Hose-connected remote reservoirs for additional thermal capacity.
- Bi-Axis hose fittings for flexible reservoir routing.
- Application-specific spring and damper specification.
- Serviceable and rebuildable construction for long-term ownership.
Choose Your Configuration
Fast Road (FRS)
A starting point for predominantly road-driven cars with occasional track use.
Track Day (TDS)
A more track-focused option for drivers prioritising chassis control with an appropriate tire and suspension setup.
Rear layout
Divorced keeps the rear spring separate from the damper. Coilover places the spring around the rear damper. The selected layout must suit the car’s mounting arrangement and any required reinforcement.
Specifications
| Specification | Details |
|---|---|
| Application | BMW E46 M3 |
| Manufacturer part number | NTCBM011R3 |
| Damping | Independent rebound, low-speed and high-speed compression |
| Reservoir arrangement | Hose-connected remote reservoirs |
| Spring specification | Fast Road or Track Day |
| Rear layout | Coilover or Divorced |
Hose Dry Break: Optional: +$548 per pair. Select above to add.
Installation & Ordering
Professional installation should include checking mounting condition, required reinforcement, reservoir routing, wheel clearance and suspension travel, followed by alignment and setup.
Contact Pit Garage to discuss your configuration and confirm current lead time before scheduling installation.
Discuss Your Setup with Pit Garage
Compare Related Nitron Products
Product FAQs
Do high- and low-speed compression refer to road speed?
No. They refer to damper shaft movement speed. A sharp suspension input can involve high shaft speed even at a low vehicle speed.
How should I approach the first damping adjustments?
Establish a suitable baseline, change one setting at a time and record the result on a repeatable route or session. Keep the tire and vehicle setup consistent while assessing changes.
Does choosing a true rear coilover affect the installation requirements?
It changes where the rear spring load is carried. Establish the mounting and reinforcement requirements for the selected layout before ordering.
