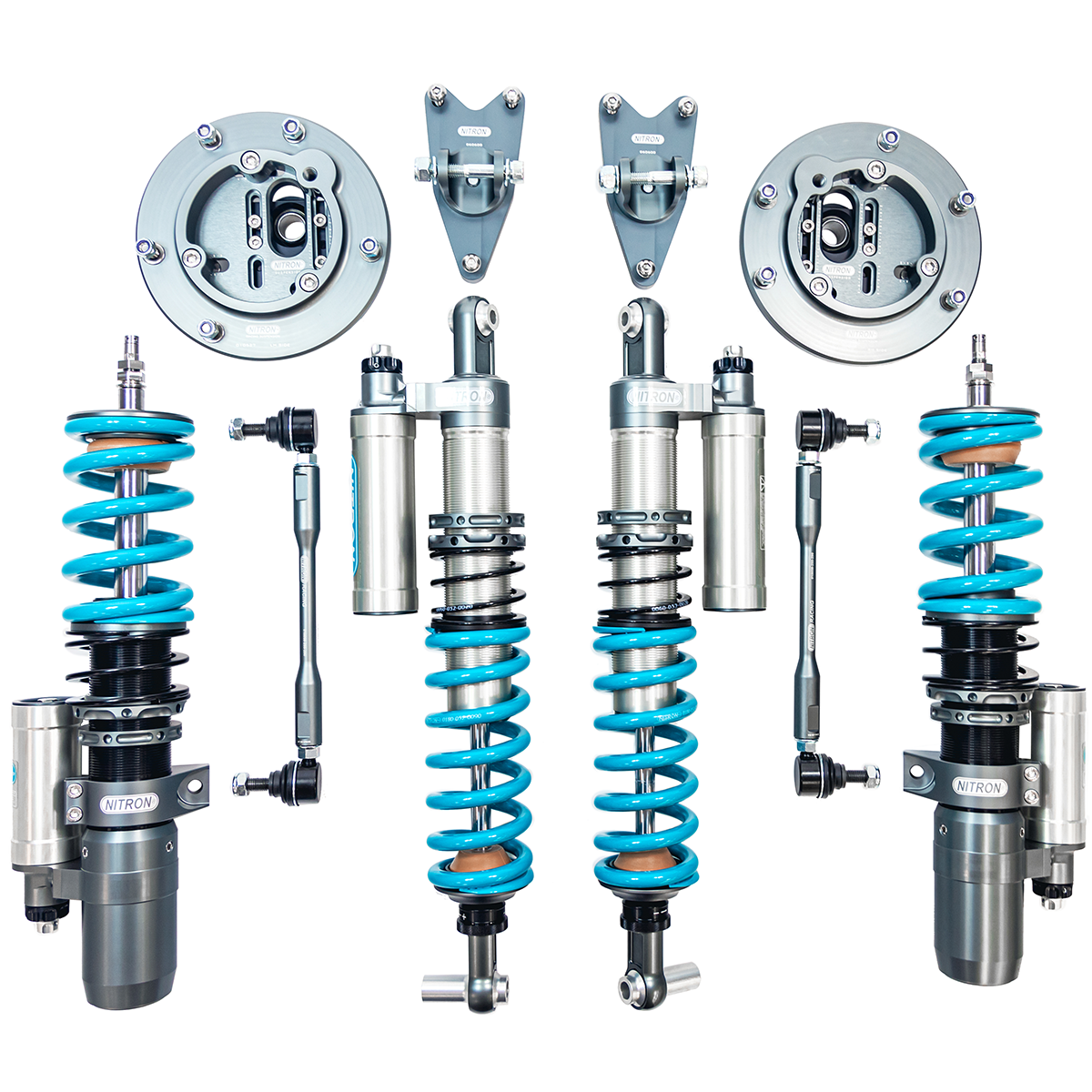

Nitron NTR R3 w/ FAL 3-Way Coilover Kit - BMW M4, M4 Competition (F82) 14-20

The NTR R3 system sets the standard for ultimate performance with a design that offers drivers and engineers unparalleled damping control.

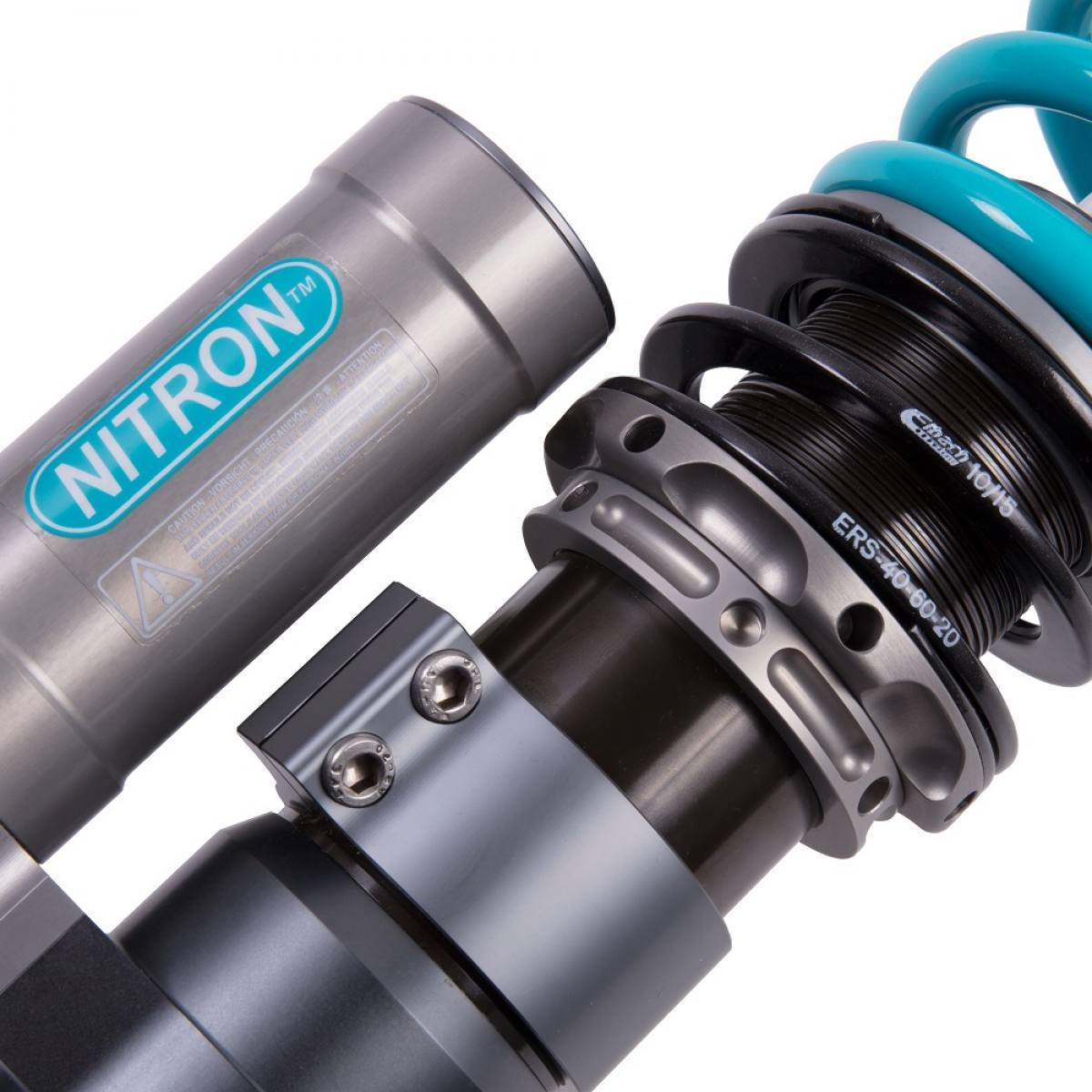

3-Way independent damping adjustment. By incorporating our class leading large diameter piston and ultra-strong piston rod, the R3 system demonstrates outstanding levels of performance, damping control and adjustment. Piggyback or remotely mounted reservoir allows quick and simple independent adjustment of rebound and fast and slow compression damping. The large range of adjustment and quality of feedback allows the experienced driver to fully exploit the full potential of their car. The R3 is a proven race winner and lap record holder across a wide spectrum of international motorsport formulas.

The high-grade materials protect against corrosion whilst reducing weight. Every R3 kit is custom built, sprung and fully serviceable. Titanium and hard-anodised parts are hand built to last not only the lengthiest endurance races, season after season, but also the harshest of winters.

Front Axle Lift (FAL)
FAL is a hydraulic based system fitted on the front axles and allows ~1" lifting of the vehicle. The hydraulic cylinder unit is located on top of the coilover body between the spring and spring perch. This allows for instant lift (within ~5 seconds) and operates completely independent of the shock/strut resulting in no unwanted additional suspension movement while driving. This allows vehicles with low ground clearance to clear obstacles (including driveways and trailer ramps) easily and can be activated from inside the vehicle via user-mounted switch.

Note: Image used for illustration purposes only. Specific details, finishes and end fittings may differ from that shown.

All Nitron shocks are hand made to order to each individual customer's requirements. Lead times are normally 2-3 weeks, but at certain times may be slightly longer. If you would like a more accurate delivery time please contact us.
