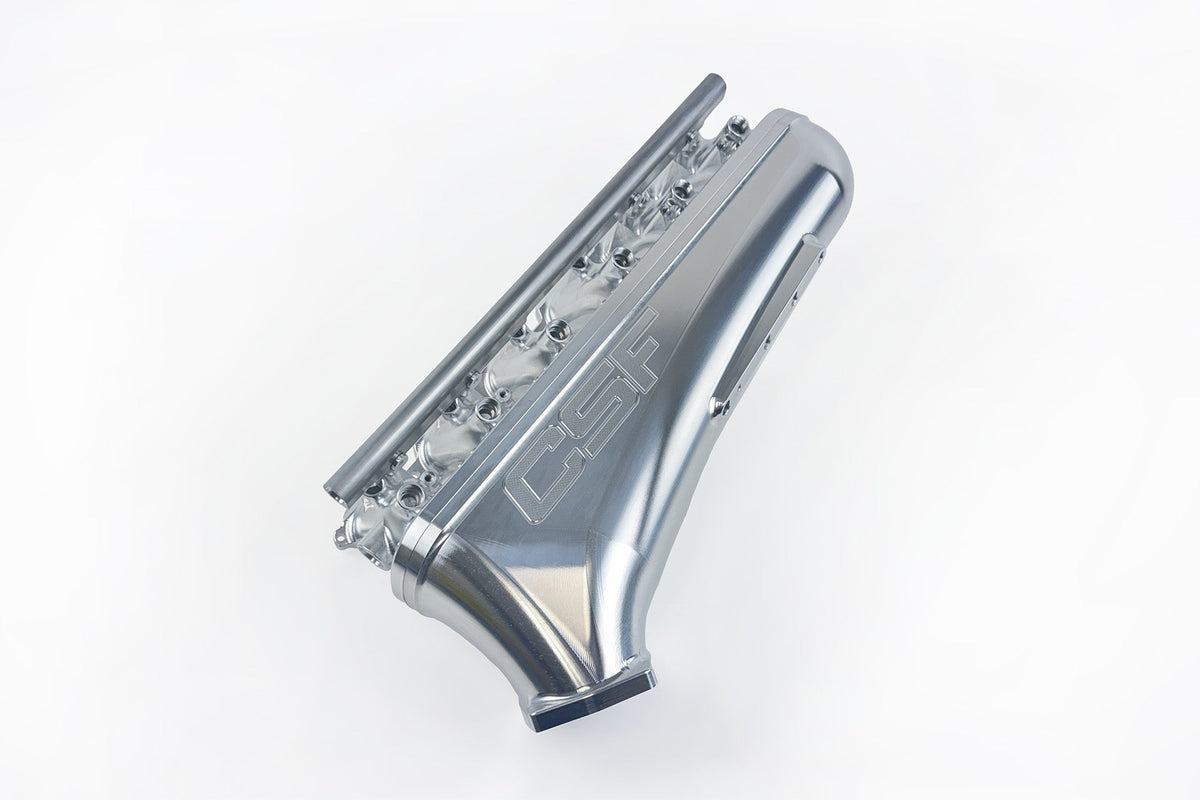

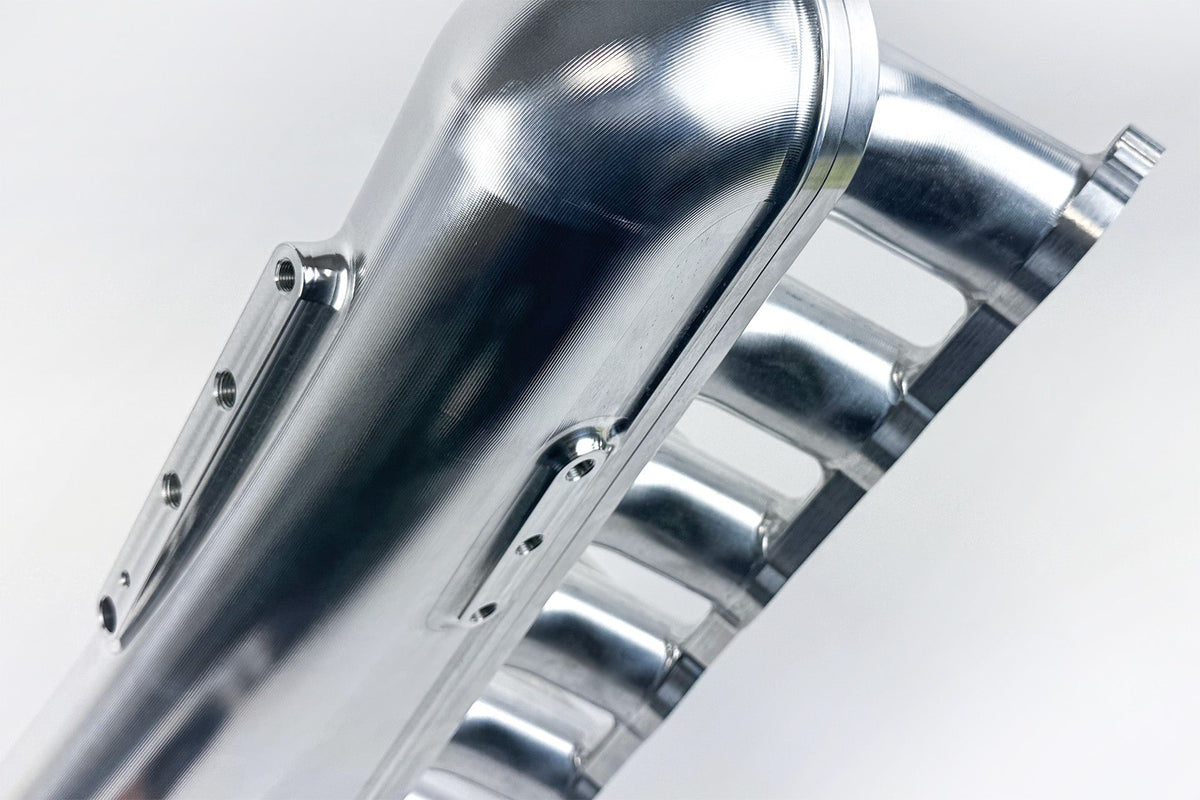

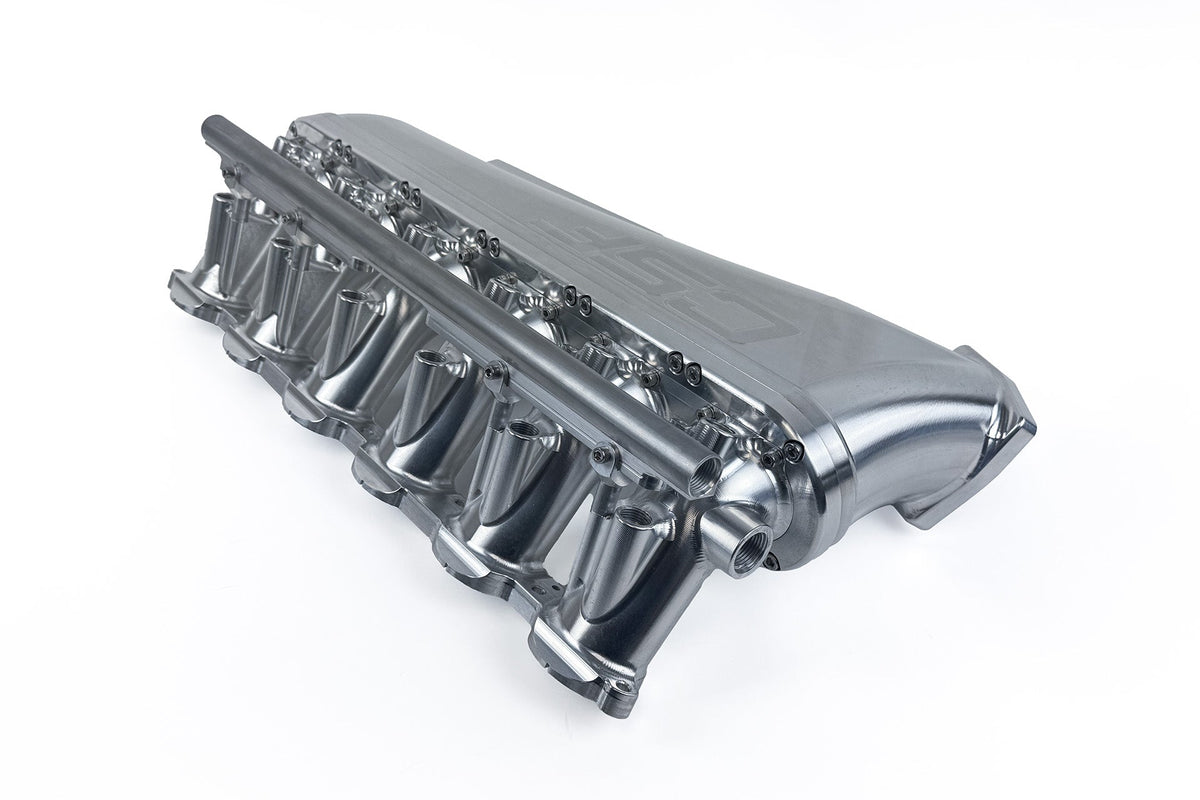

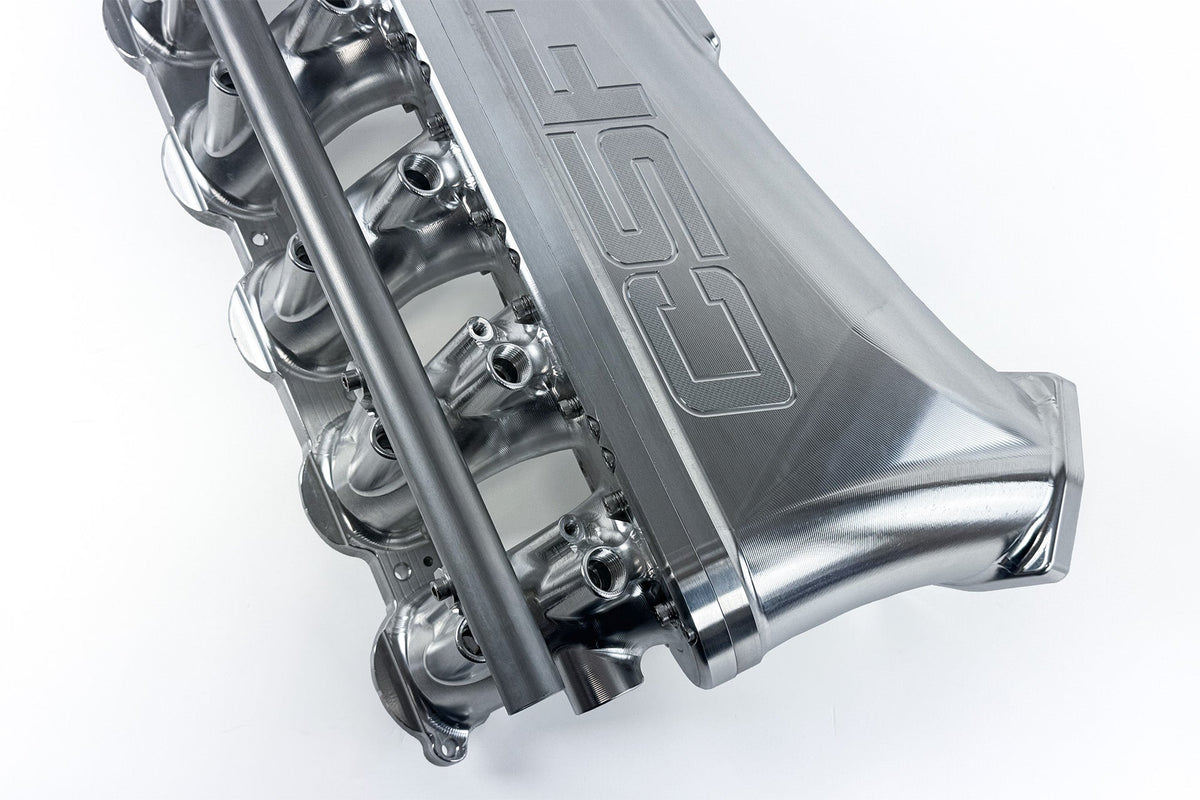

CSF 8401 BMW B58 No Limit Billet Intake Manifold
CSF 8401 BMW B58 No Limit Billet Intake Manifold is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
The CSF 8401 No Limit is a billet intake manifold for a custom B58 cooling and induction build. It does not contain an integrated intercooler: an external air-to-air or air-to-water cooler and custom charge piping are required.

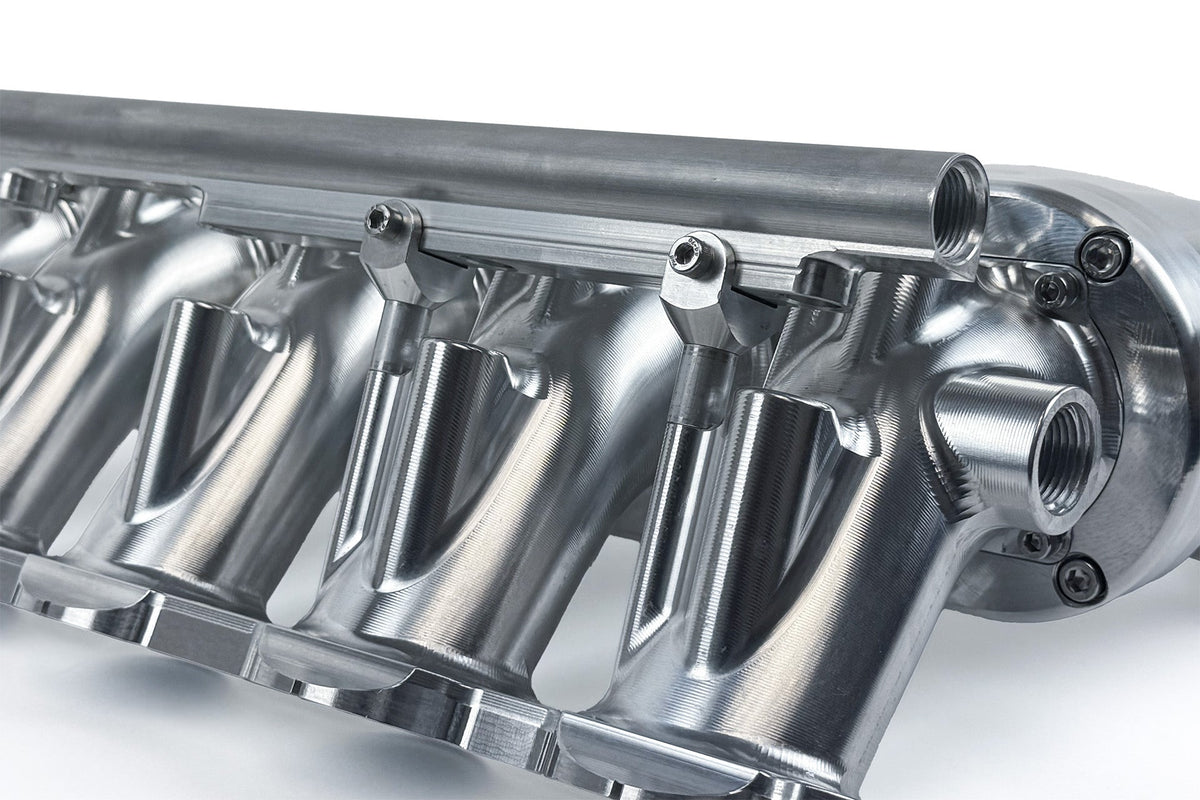

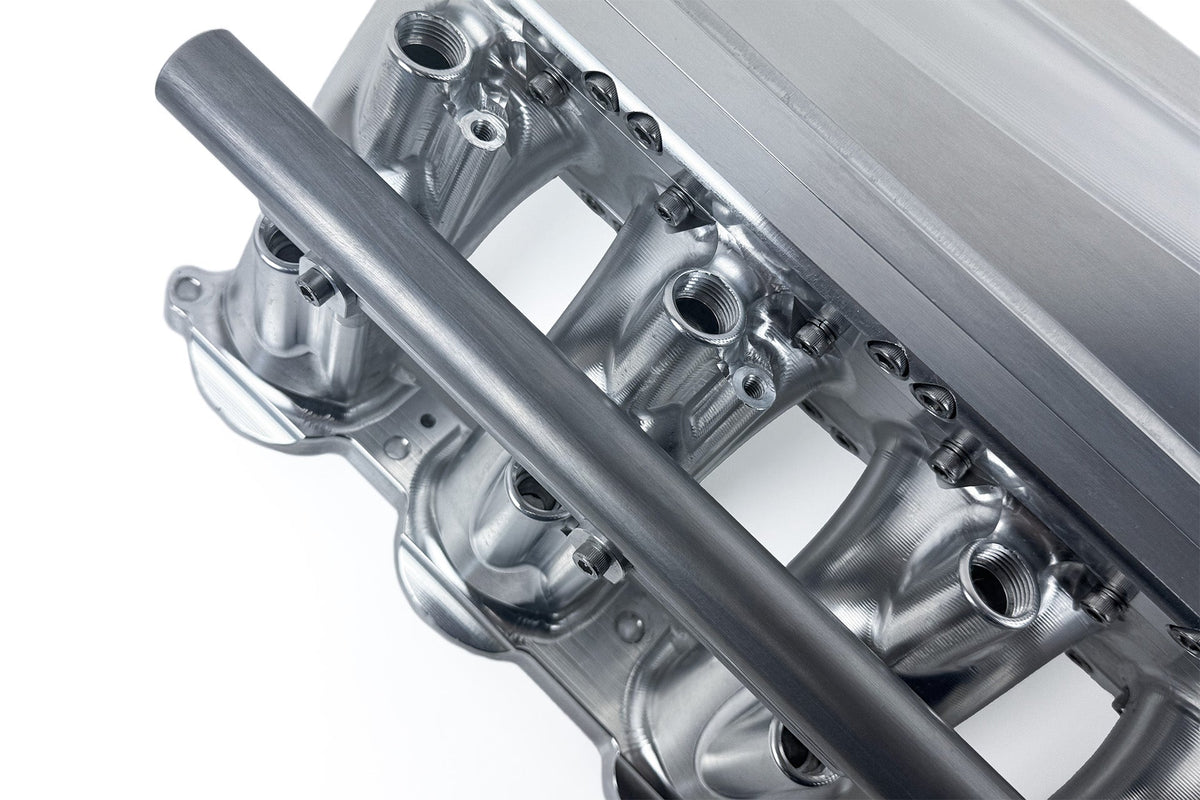

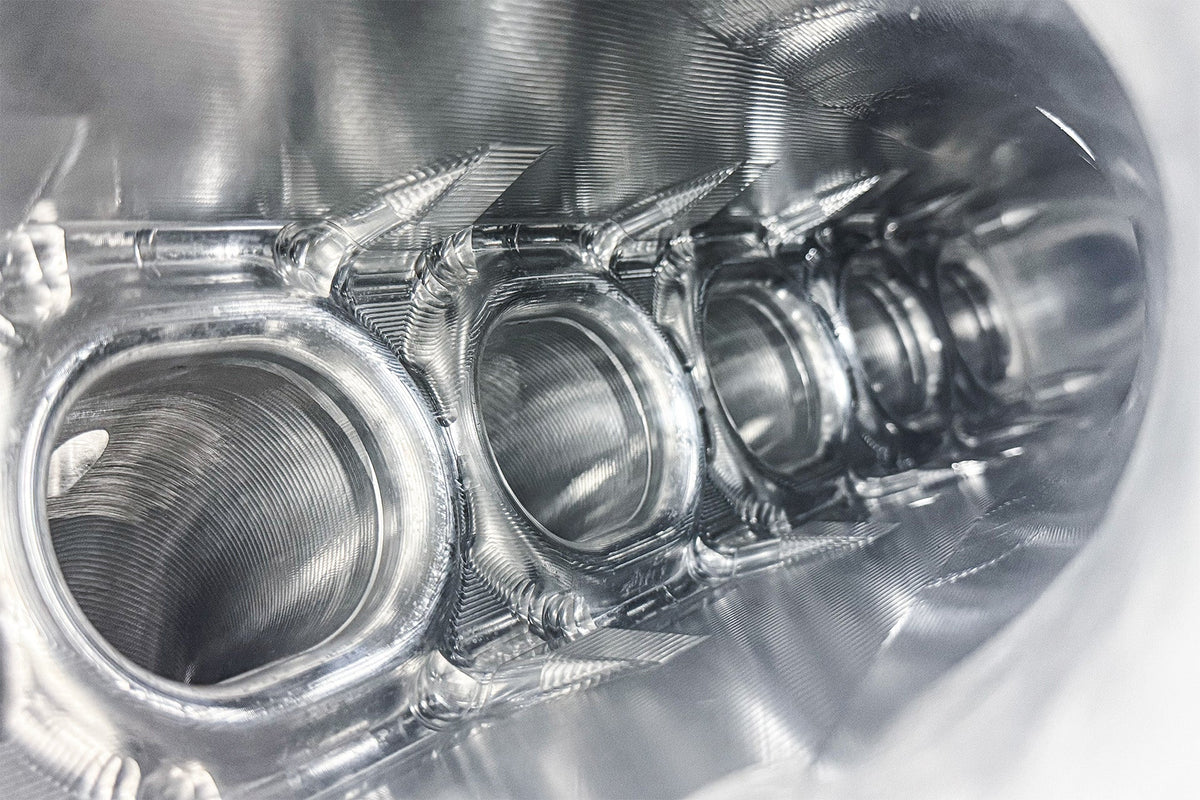

CPC 6061 billet construction, internal velocity stacks and a flange for a 77mm S55 throttle body support a conversion-focused layout. A port-injection rail, six block-off plugs and thermal spacer are supplied. A second rail can be added separately when the fueling strategy calls for twelve injector positions.
Specifications
| Specification | Details |
|---|---|
| Part number / family | 8401 |
| Cooling architecture | External intercooler required, not included |
| Construction | CPC 6061 billet aluminum |
| Throttle-body flange | 77mm S55, BMW 13547597871 |

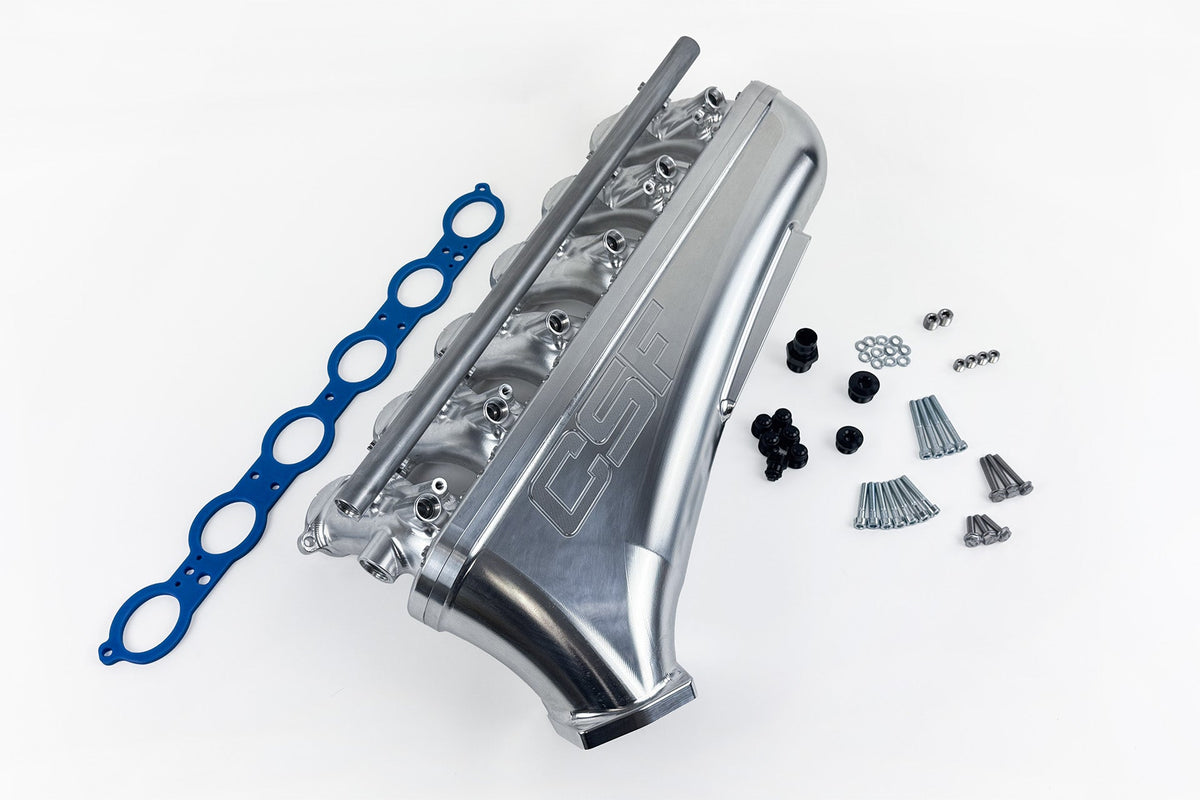

| Included | One fuel rail, six block-off plugs and thermal spacer |

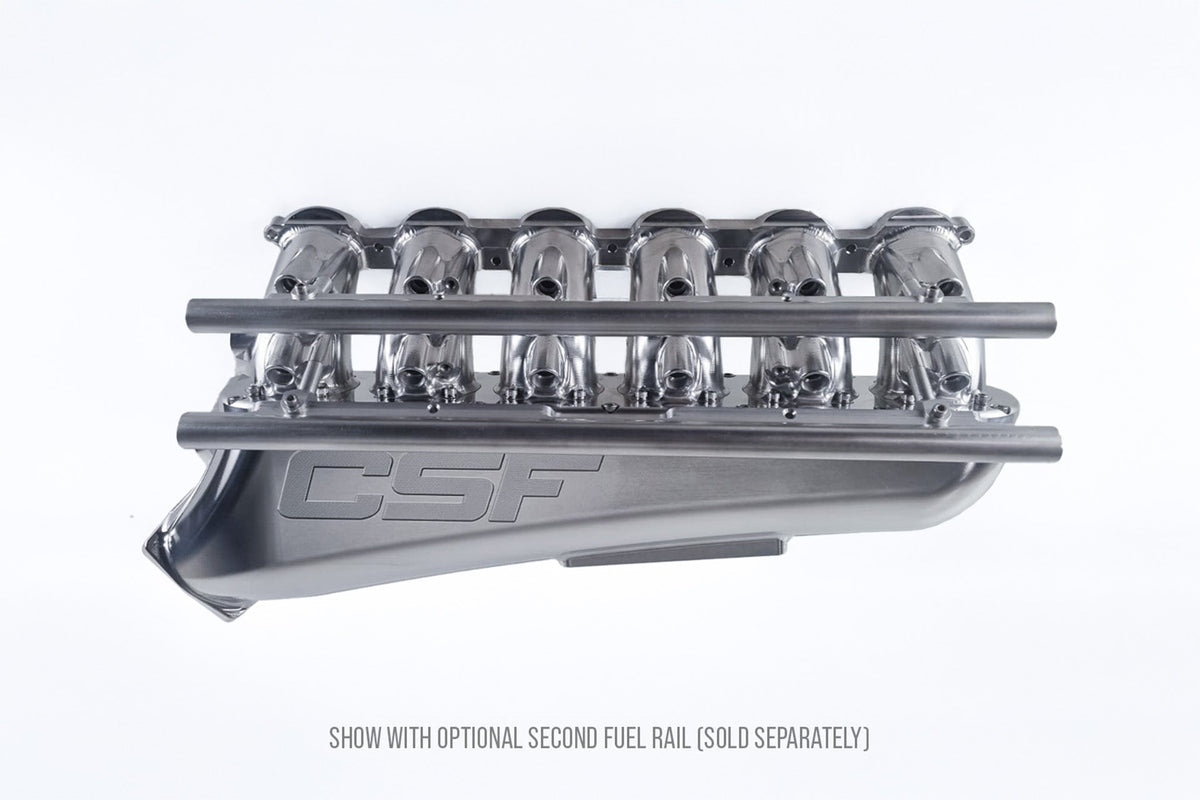

| Second fuel rail | Optional CSF 8404, not included |

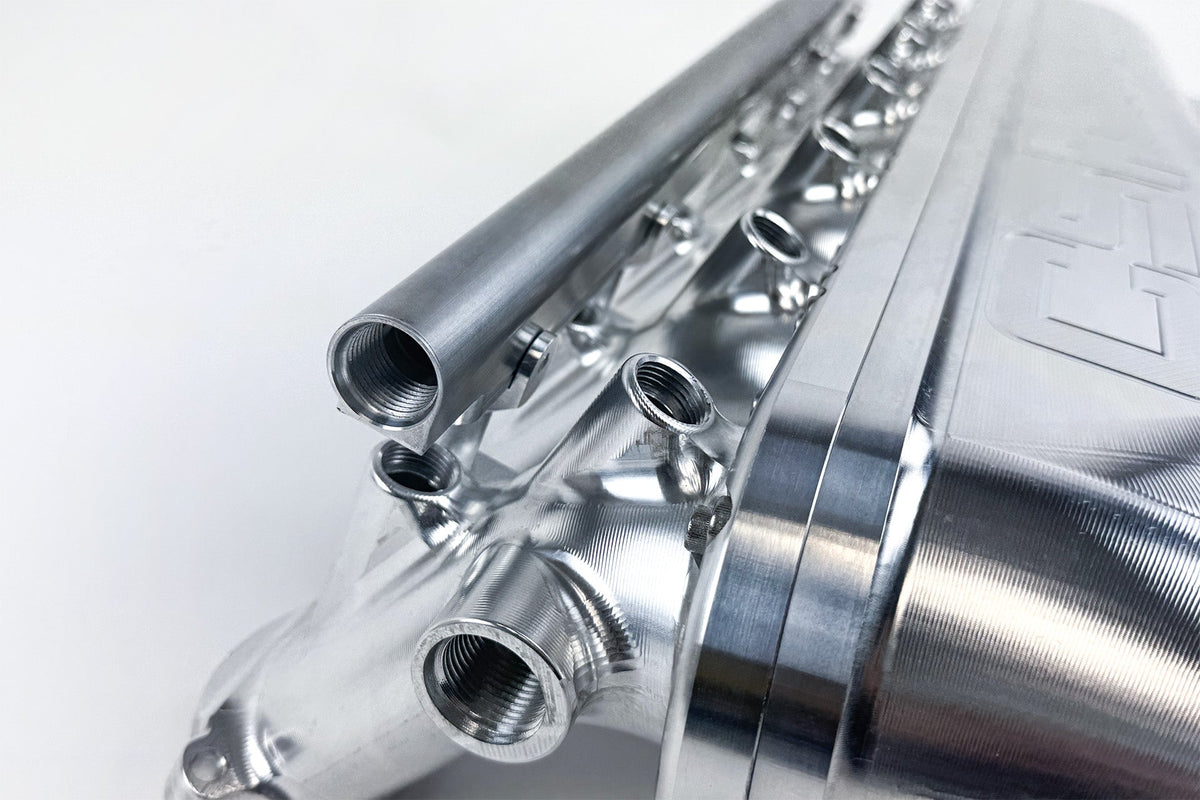

| Sensor provisions | OEM TMAP, two 1/4 NPT and four 1/8 NPT ports |
| Finish | Raw aluminum |
Fitment and configuration: For motorsport use with extensive modifications. The S55 throttle-body conversion requires the appropriate electronic adaptation; CSF recommends a conversion harness. External cooling, charge piping and supporting conversion parts are not supplied as a complete kit.
Vehicle applications
| Years | Vehicle | Engine / transmission | Notes |
|---|---|---|---|
| — | — | — | Will work on vehicles with B58 Engine Swaps |
| 2023-2026 | BMW G42 M240i | Turbocharged 3.0L L6 | See Fitment Notes |
| 2022-2026 | BMW G42 M240i xDrive | Turbocharged 3.0L L6 | See Fitment Notes |
| 2020-2024 | BMW G20 M340i | Turbocharged 3.0L L6 | See Fitment Notes |
| 2020-2024 | BMW G20 M340i xDrive | Turbocharged 3.0L L6 | See Fitment Notes |
| 2021-2024 | BMW G22/G23 M440i | Turbocharged 3.0L L6 | See Fitment Notes |
| 2022-2024 | BMW G26 M440i Gran Coupe | Turbocharged 3.0L L6 | See Fitment Notes |
| 2021-2024 | BMW G22/G23 M440i xDrive | Turbocharged 3.0L L6 | See Fitment Notes |
| 2022-2024 | BMW G26 M440i xDrive Gran Coupe | Turbocharged 3.0L L6 | See Fitment Notes |
| 2019-2026 | BMW G29 Z4 M40i | Turbocharged 3.0L L6 | See Fitment Notes |
| 2024 | Toyota GR Supra 45th Anniversary Edition | Turbocharged 3.0L L6 | See Fitment Notes |
| 2023 | Toyota GR Supra A91-MT Edition | Turbocharged 3.0L L6 | See Fitment Notes |
| 2023 | Toyota GR Supra | Turbocharged 3.0L L6 | See Fitment Notes |
| 2020-2026 | Toyota GR Supra | Turbocharged 3.0L L6 | See Fitment Notes |
| 2023 | Toyota GR Supra Premium | Turbocharged 3.0L L6 | See Fitment Notes |
| 2024-2026 | Toyota GR Supra Premium | Turbocharged 3.0L L6 | See Fitment Notes |
| 2024 | Toyota GR Supra Premium 45th Anniversary Edition | Turbocharged 3.0L L6 | See Fitment Notes |
| 2026 | Toyota GR Supra | Turbocharged 3.0L L6 | See Fitment Notes |
| 2026 | Toyota GR Supra MkV Final Edition | Turbocharged 3.0L L6 | See Fitment Notes |
Product FAQs
Does the No Limit manifold include an intercooler?
No. It is designed around an external intercooler conversion. It is not a drop-in replacement with a built-in water-cooled core.
Is the second fuel rail included?

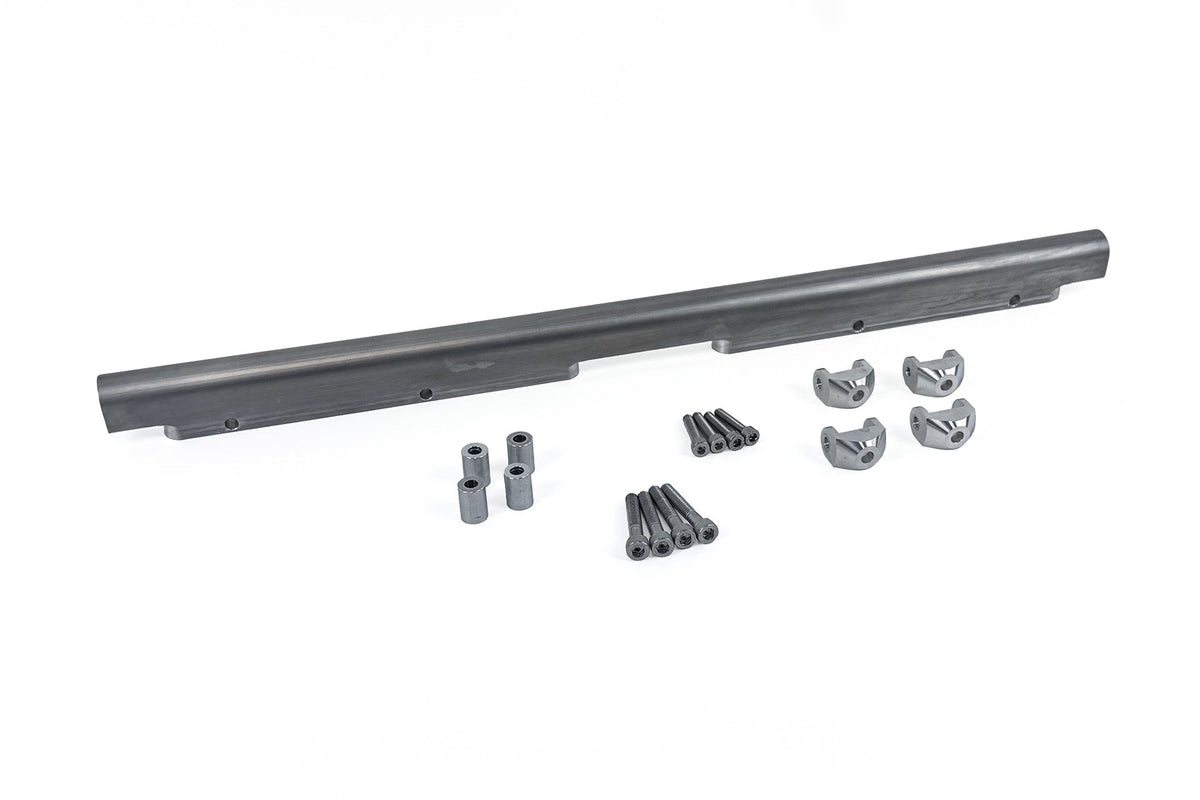

No. One rail and six block-off plugs are included. The 8404 second-rail kit and injectors are separate.
Can it use the original throttle body without conversion?
The flange is designed for the 77mm S55 throttle body. Plan the throttle body, harness and electronic compatibility as part of the conversion.
