Nitron elec-TRON R1 with FAL Coilover Kit - Toyota GR Supra A90/A91
Nitron elec-TRON R1 with FAL Coilover Kit - Toyota GR Supra A90/A91 - Fast Road (FRS) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability

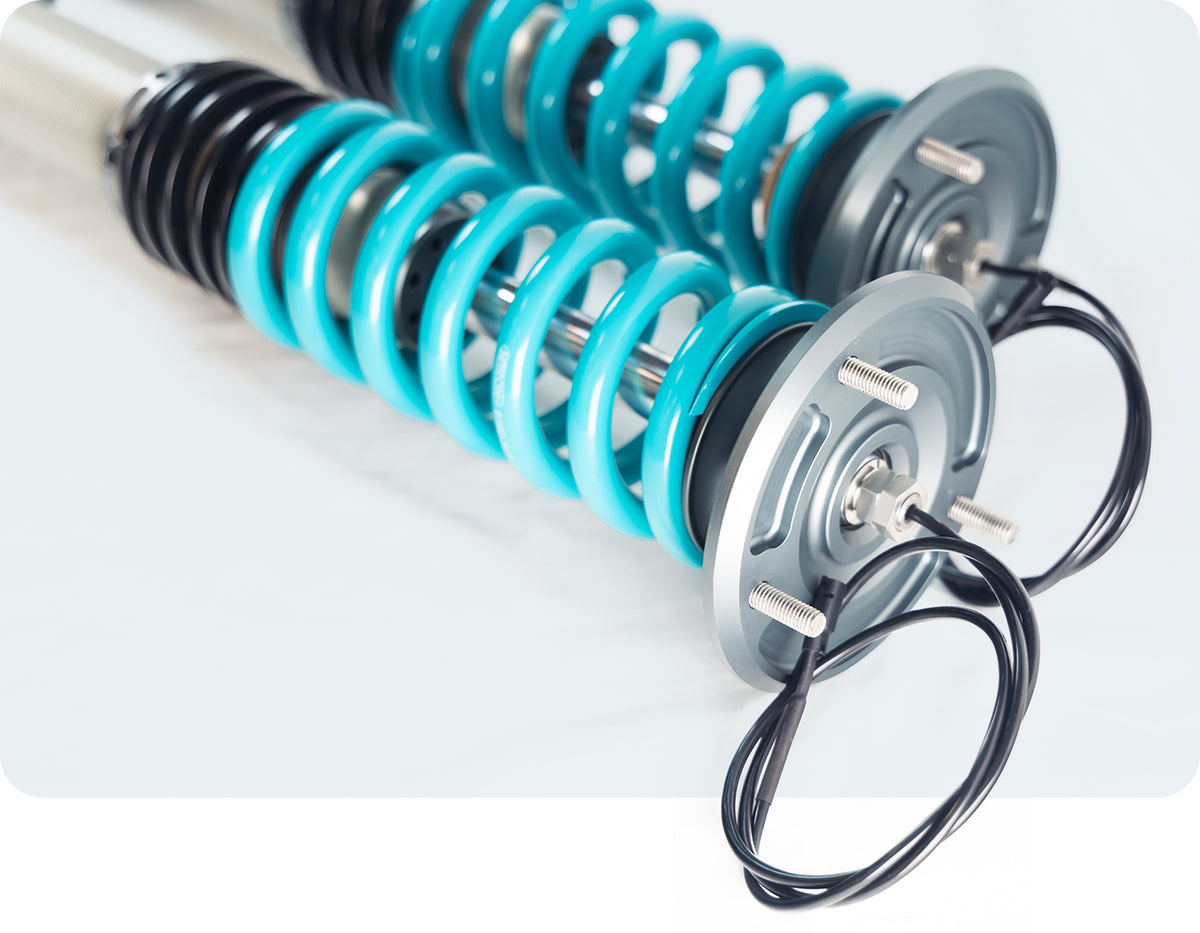

The Nitron elec-TRON R1 with FAL coilover kit for Toyota GR Supra A90/A91 provides electronically controlled suspension with a standalone front axle lift package for obstacle clearance.
Key features and intended use
- Adds temporary front axle lift for approaching driveways, ramps and similar obstacles.
- Electronic damper adjustment through the specified control system.
- Vehicle-specific spring and mounting configuration selected for the intended installation.
- An electronic suspension option distinct from a passive kit with an EDC delete module.
Application and specifications
| Vehicle application | Toyota GR Supra A90/A91 |
|---|---|
| Manufacturer | Nitron |
| Supplier base part number | NTCTO013ER1 |
| Kit family | elec-TRON R1 |
| Damping control | Electronic damper adjustment through the specified control system |
| Front axle lift | Included standalone FAL package; confirm installation |
| Rear suspension layout | Divorced |
| Droplinks included | No |
| Included electronics | Nitron DCU, wiring harness and switch |
Front axle lift: what this version adds
The standalone lift package is specified with lift cylinders, hydraulic lines, a pump, wiring loom and controller. The supplied application data states 25 mm lift at the shock. Vehicle ground-clearance change depends on the suspension geometry; it should not be presented as a guaranteed 25 mm rise at the bumper.
FAL assists with low-speed obstacle clearance. It does not make an unsuitable ride height, wheel clearance or suspension travel acceptable. Check hydraulic routing, component placement and clearance through suspension movement during installation.
Nitron has limited information on left-hand-drive FAL installation.
How to choose the setup
Choose the spring package around tire grip, track frequency and the intended ride quality. FRS means Fast Road Specification; TDS means Track Day Specification. These are spring/build choices, not electronic driving modes. The supplier base part number alone does not capture every ordered configuration.
Installation and ordering
Provide the model year, chassis, factory suspension equipment and intended use when specifying the order. Have the installer verify the mounts, usable travel, wheel clearance and any required electronic hardware. Confirm lead time for the selected configuration; catalog availability is not a promise of immediate dispatch.
Compare related Nitron products
- Nitron elec-TRON R1 Coilover Kit - Toyota GR Supra A90/A91
- Nitron elec-TRON R3 Coilover Kit - Toyota GR Supra A90/A91
Product FAQs
Is this a complete elec-TRON kit or a standalone lift upgrade?
This listing is a suspension package with front axle lift. It is separate from the suspension-only listing and should not be ordered as a universal add-on for existing dampers.
Does front axle lift determine my normal driving height?
Choose the normal suspension height and alignment as part of the chassis setup. Temporary obstacle clearance is a separate requirement; establish the usable lift for the installed vehicle.
Will the Toyota GR Supra A90/A91 use its original damping controls?
This Supra kit is supplied with a Nitron DCU, wiring harness and switch for electronic damping control.
Is this the same adjustment system as a manual NTR R1?
No. This listing uses electronic damping control. Select it around the intended controller and vehicle integration, rather than the manual R1 adjustment layout.
Ask Pit Garage about this Nitron application. Pit Garage is an automotive repair and race-preparation shop in the Los Angeles area.
