CSF 8400C Gen 2 B58 Race X Charge-Air Manifold – Custom Finish

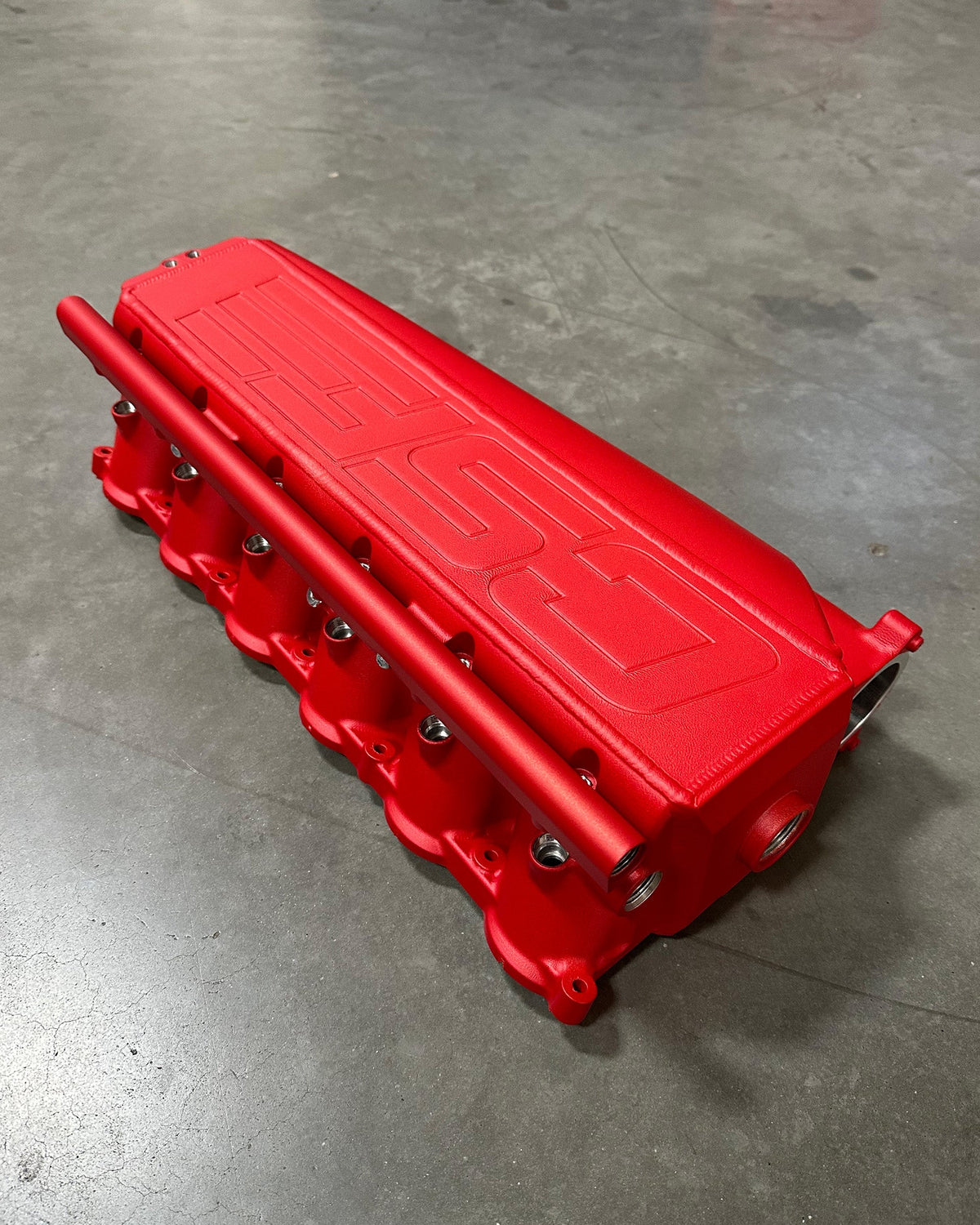

CSF 8400C Gen 2 B58 Race X Charge-Air Manifold – Custom Finish - Anodized Red is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability

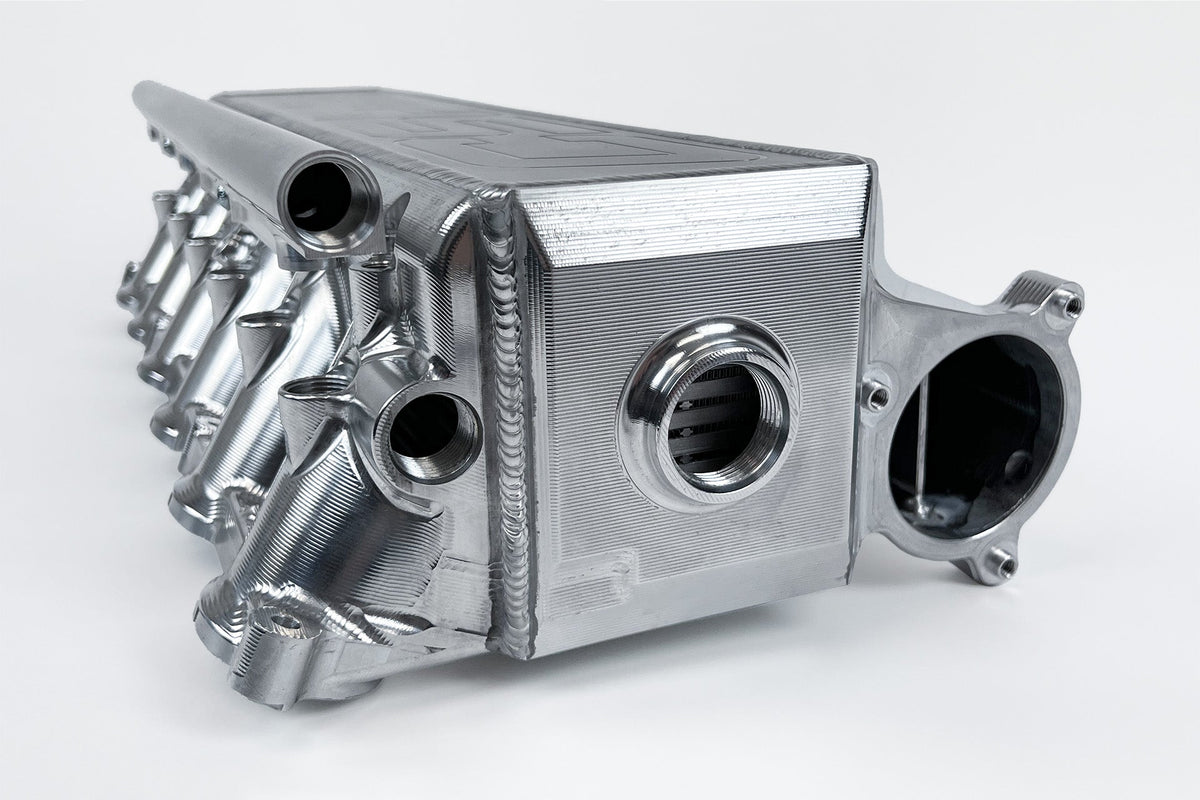

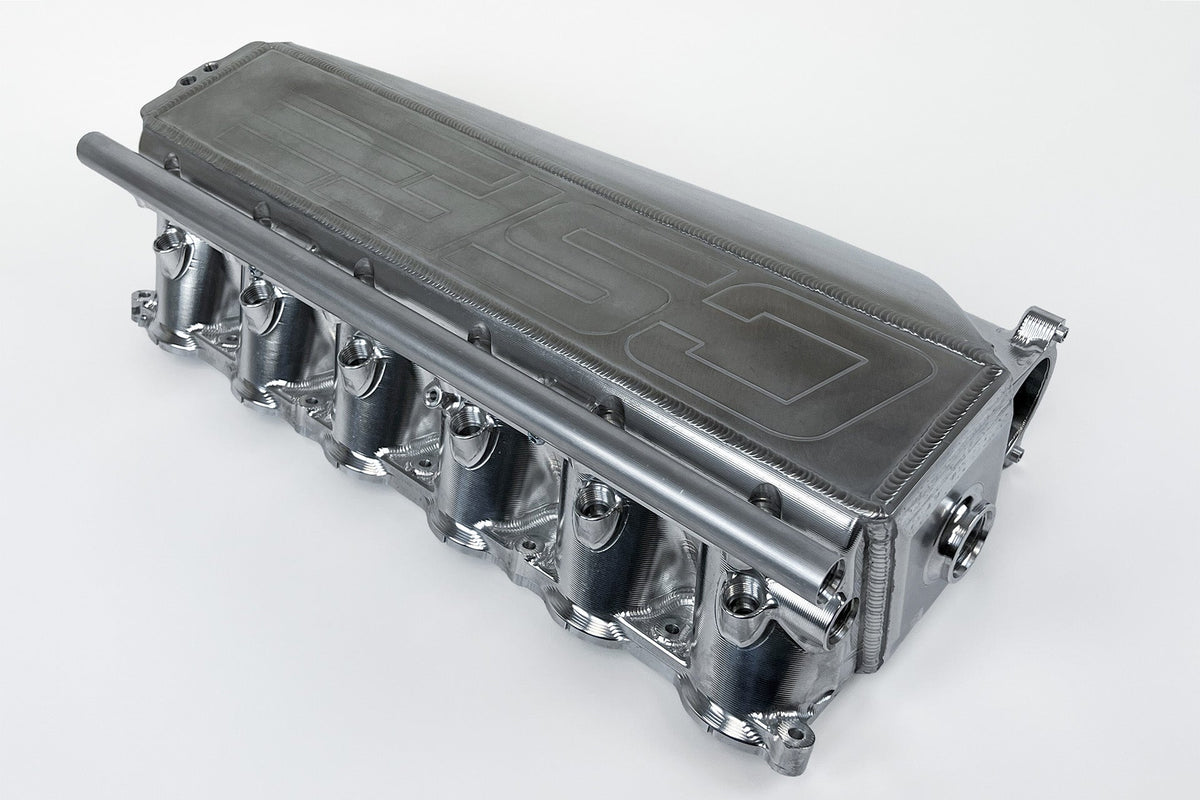

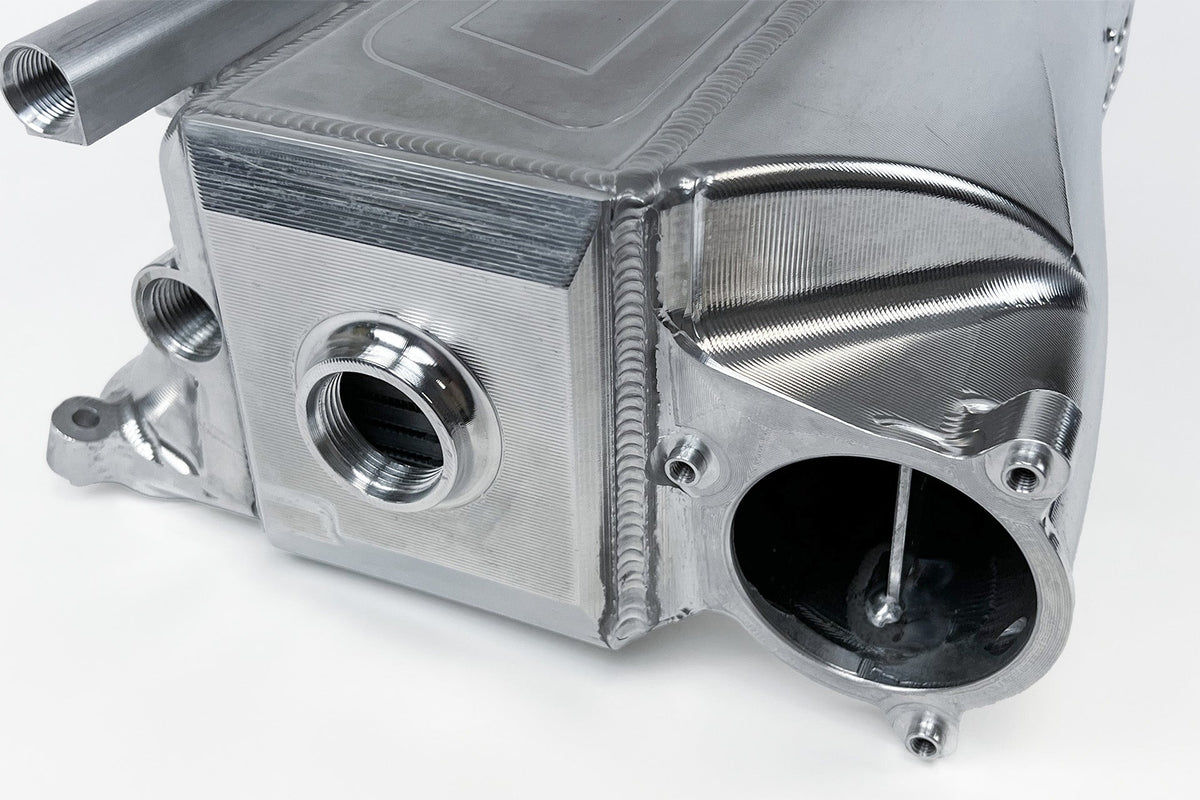

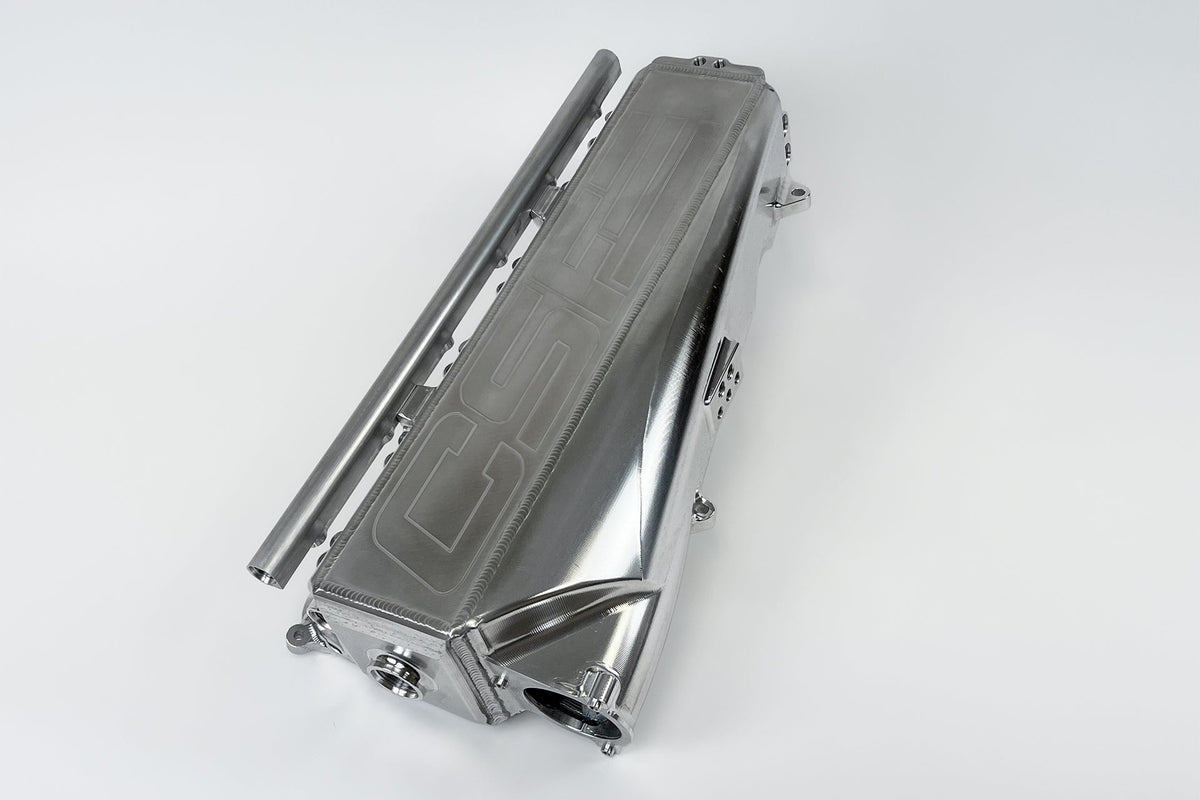

The CSF 8400C Race X is a liquid-to-air charge-cooling manifold for compatible Gen 2 B58 engines, supplied in custom finish. Its 15-row core has 25% more core volume than CSF’s 12-row 8200 manifold—not 25% more than every factory manifold.

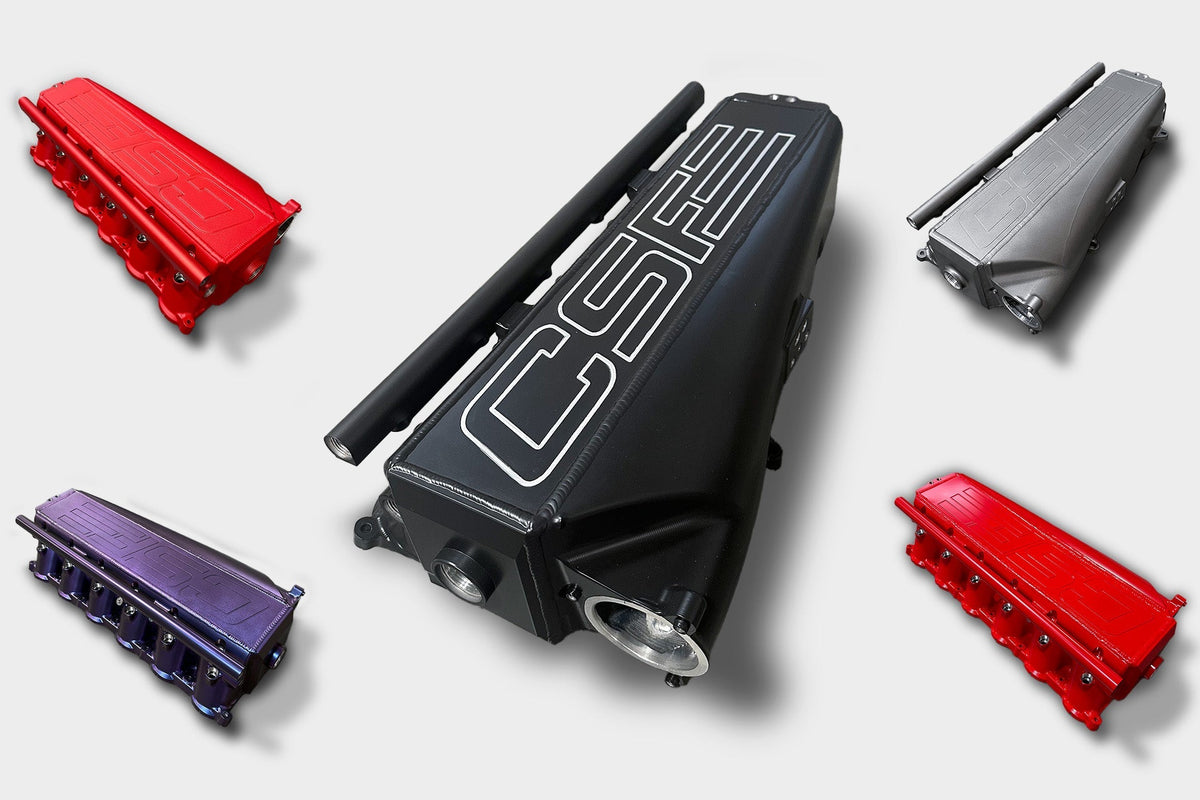

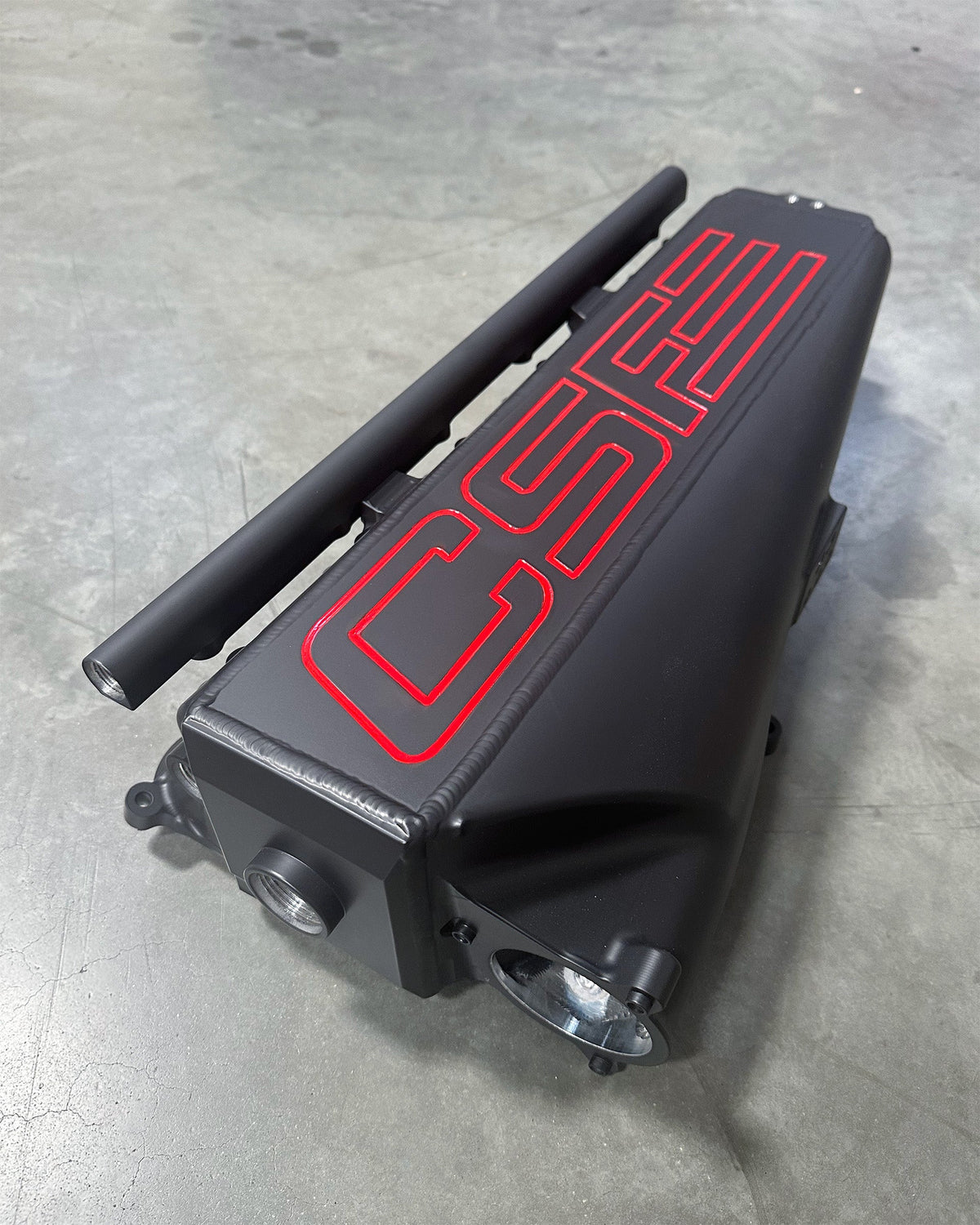

The custom options select a complete manifold in the listed finish. A front -16 ORB water port supports alternative coolant plumbing, including single-pass or ice-box layouts. The included -8AN fuel rail and additional sensor provisions are intended for a build with separately planned fueling and cooling circuits.
Specifications
| Specification | Details |
|---|---|
| Part number / family | 8400C |
| Cooling method | Integrated liquid-to-air |
| Engine generation | Compatible Gen 2 B58, not B58N/B58TU2 |

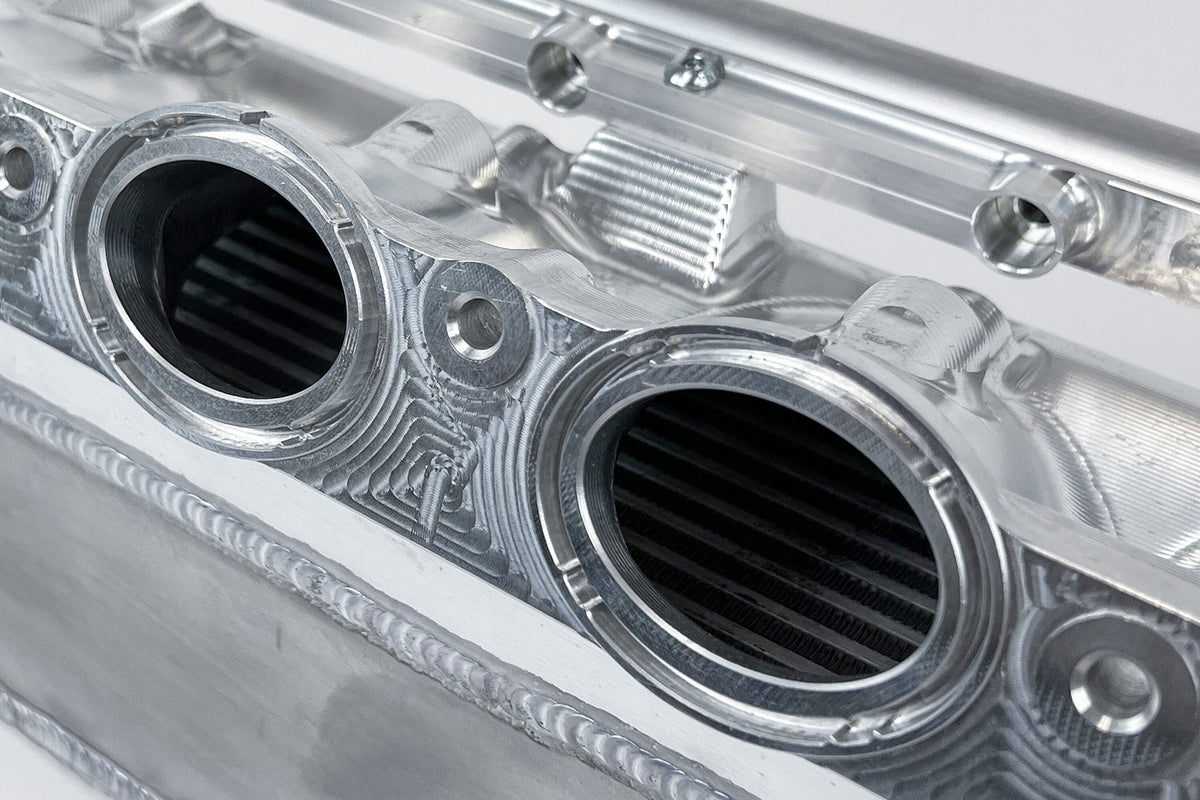

| Core | 15 rows |
| Construction | CPC billet aluminum |

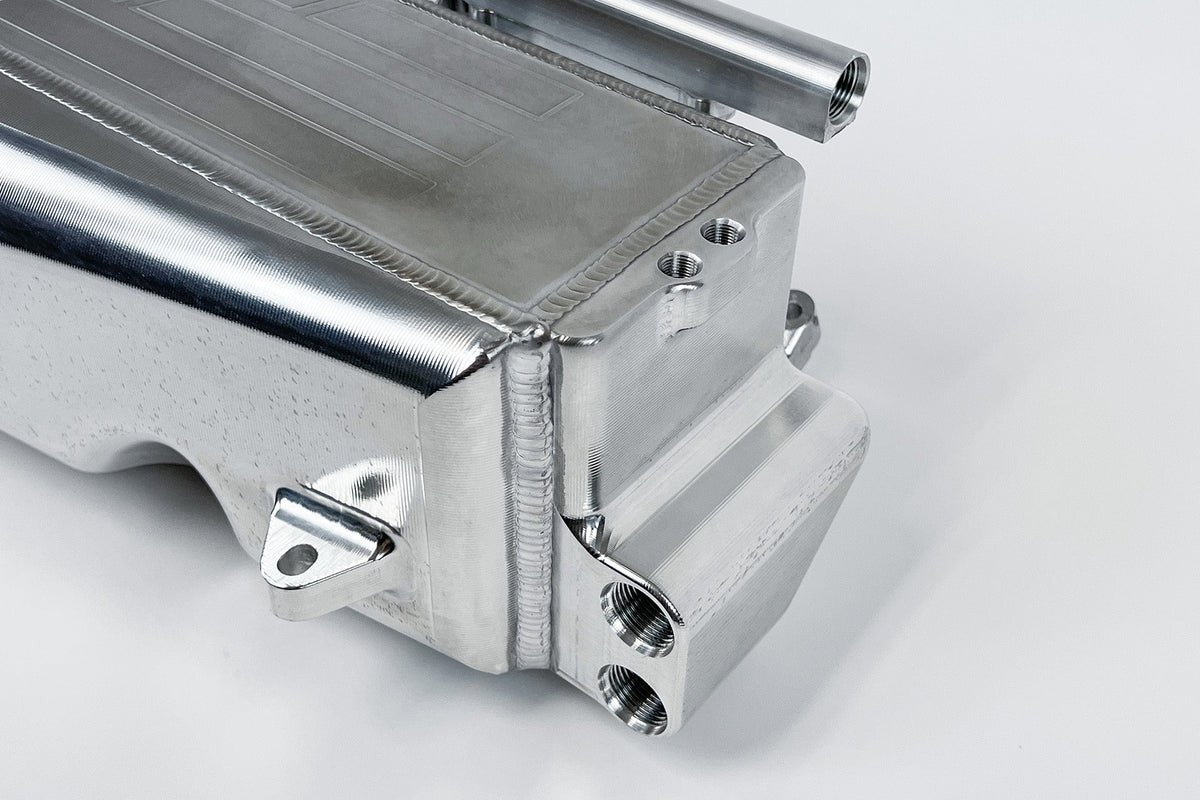

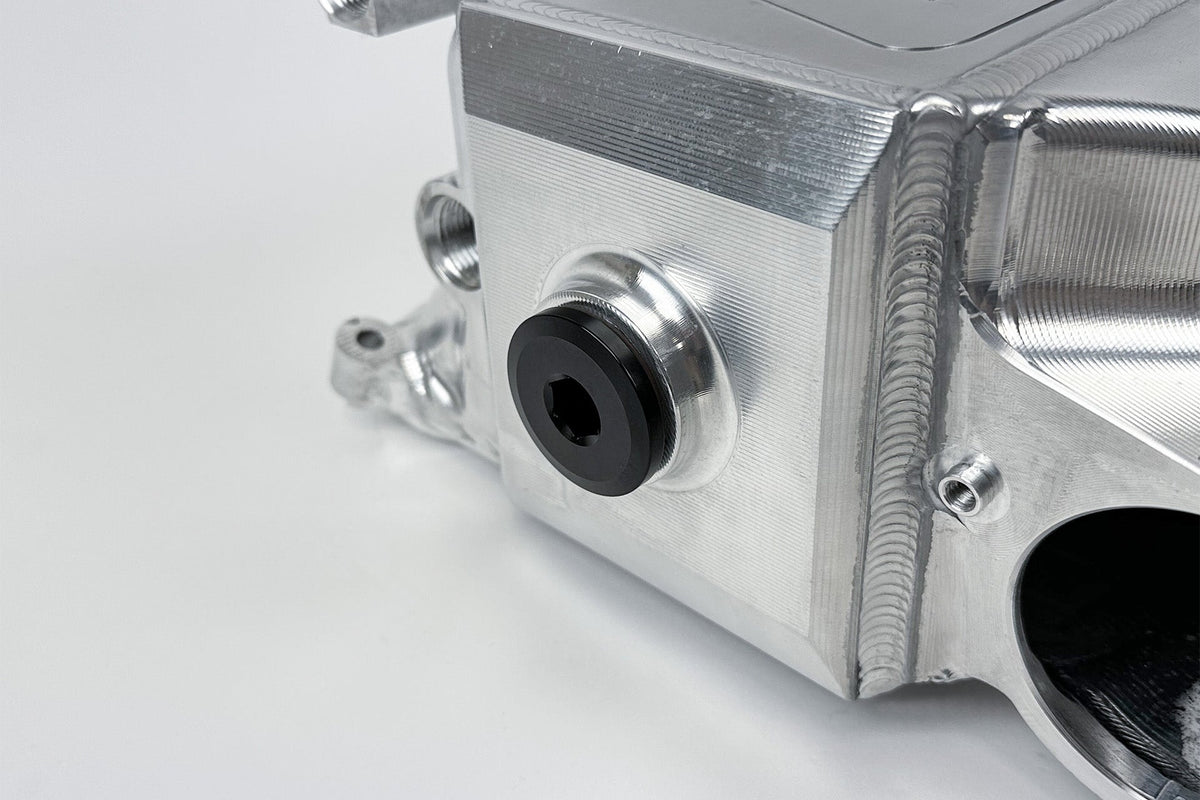

| Front water port | -16 ORB |

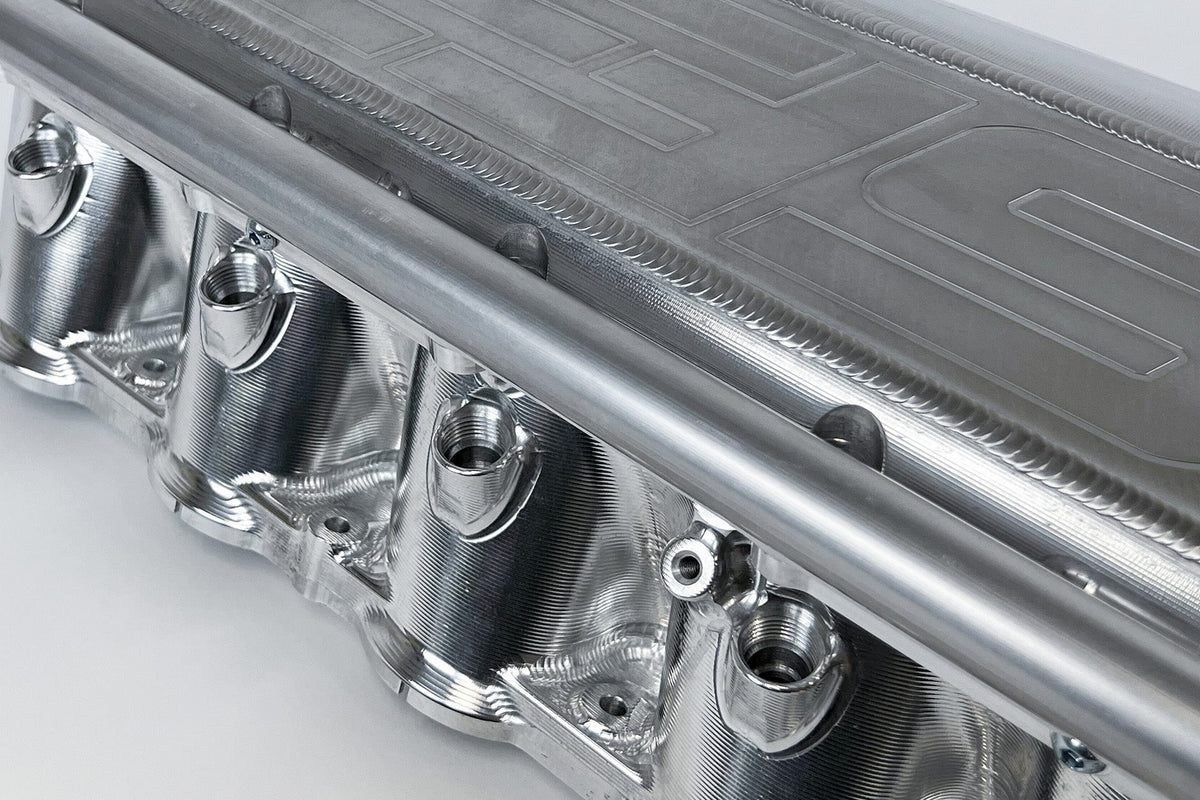

| Included fuel rail | -8AN |

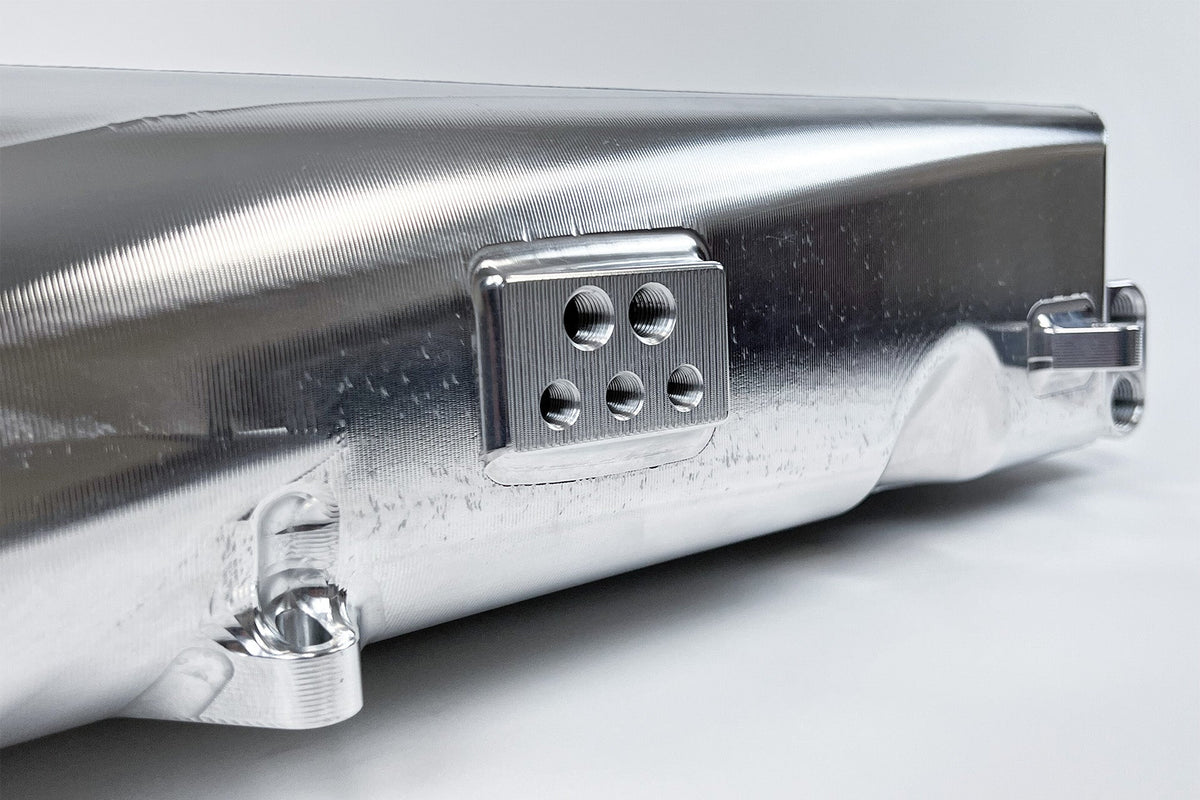

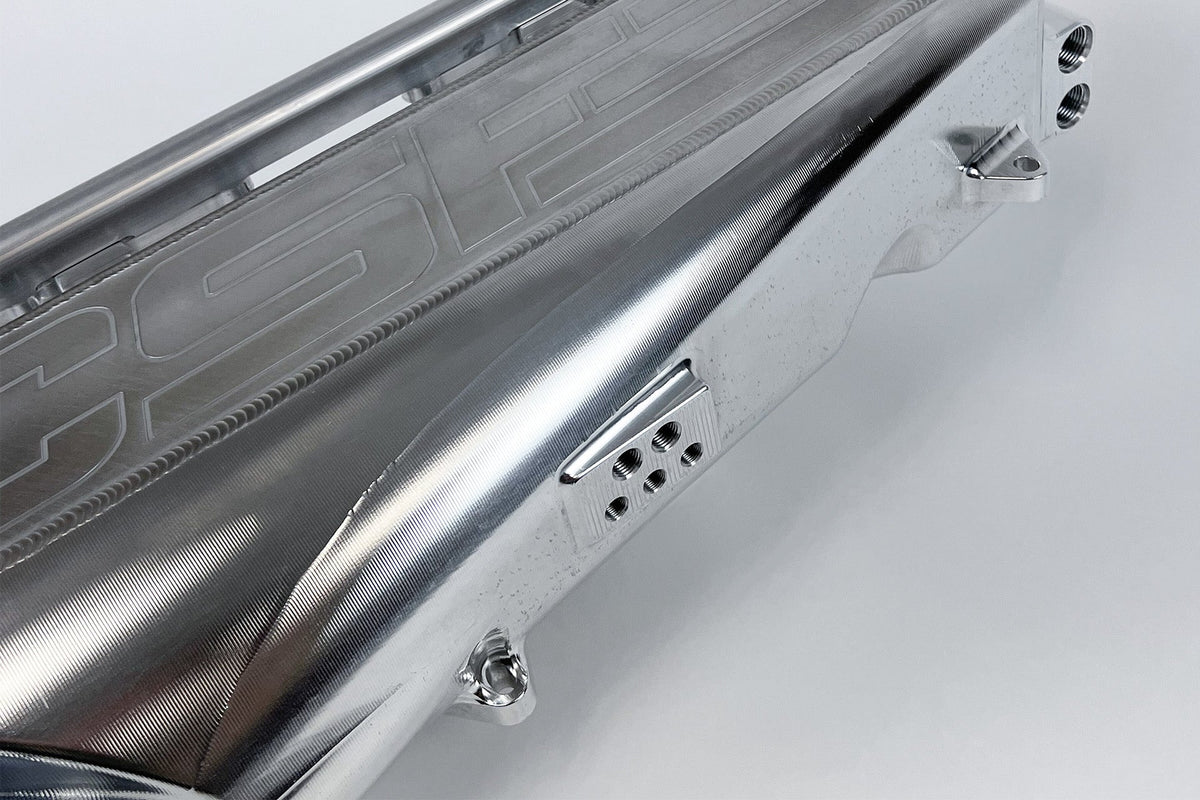

| Sensor ports | Three 1/8 NPT and two 1/4 NPT |

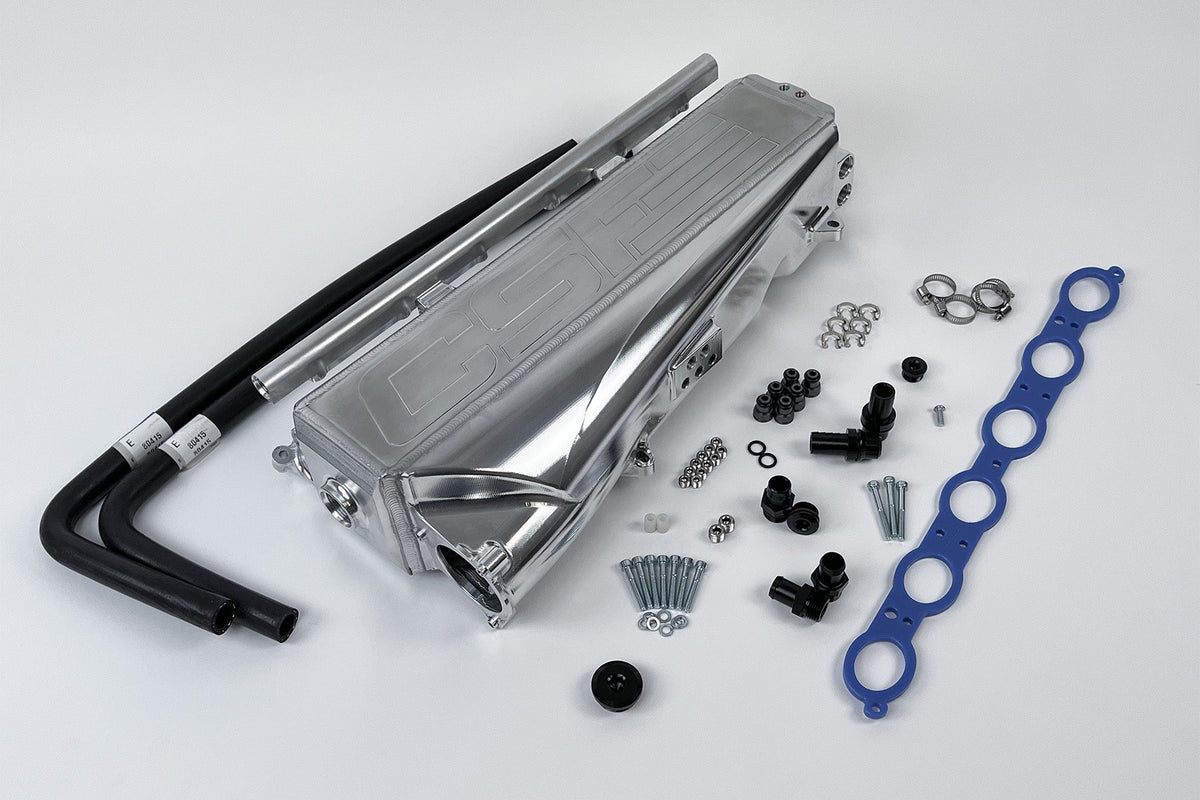

| Included | Thermal spacer |

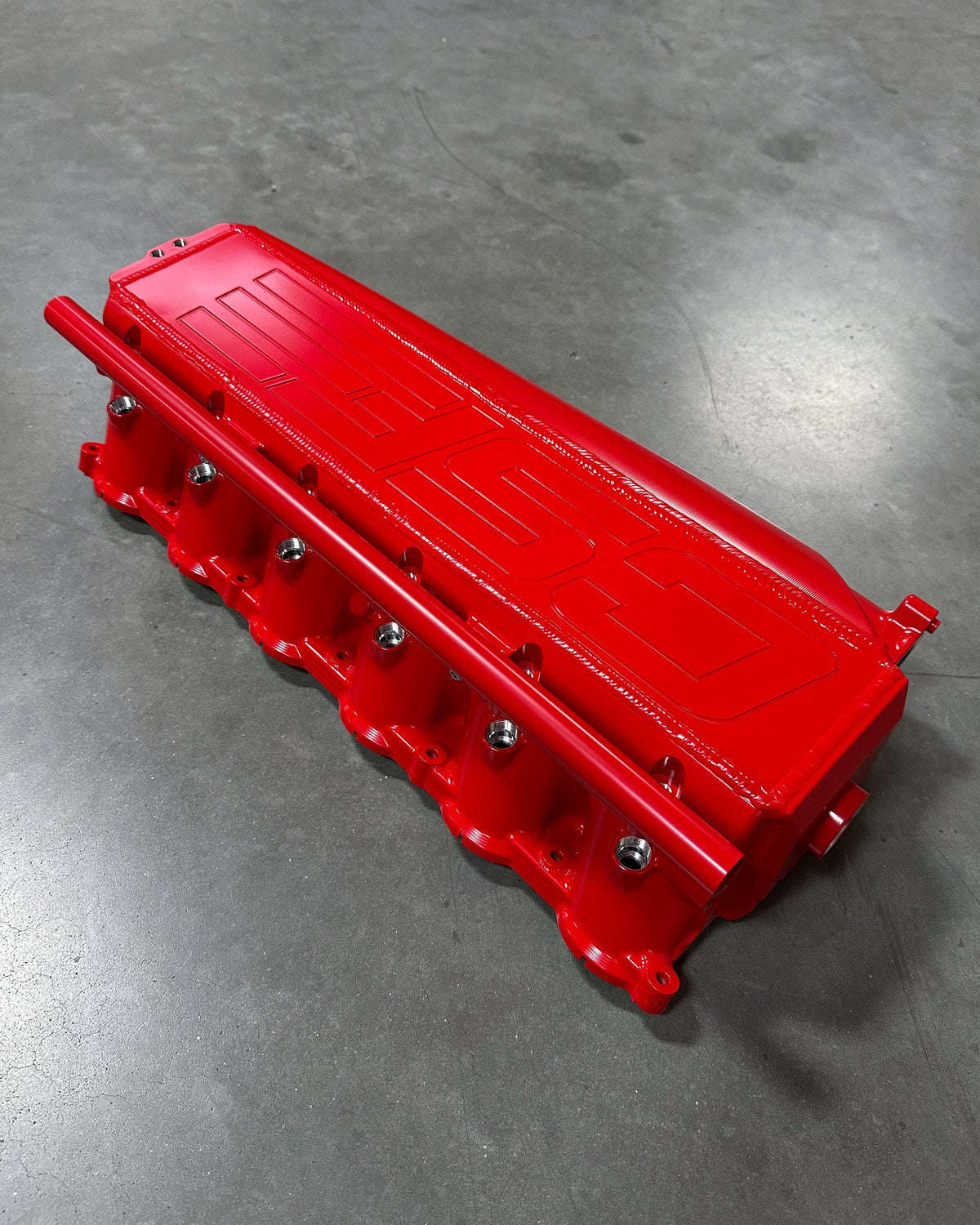

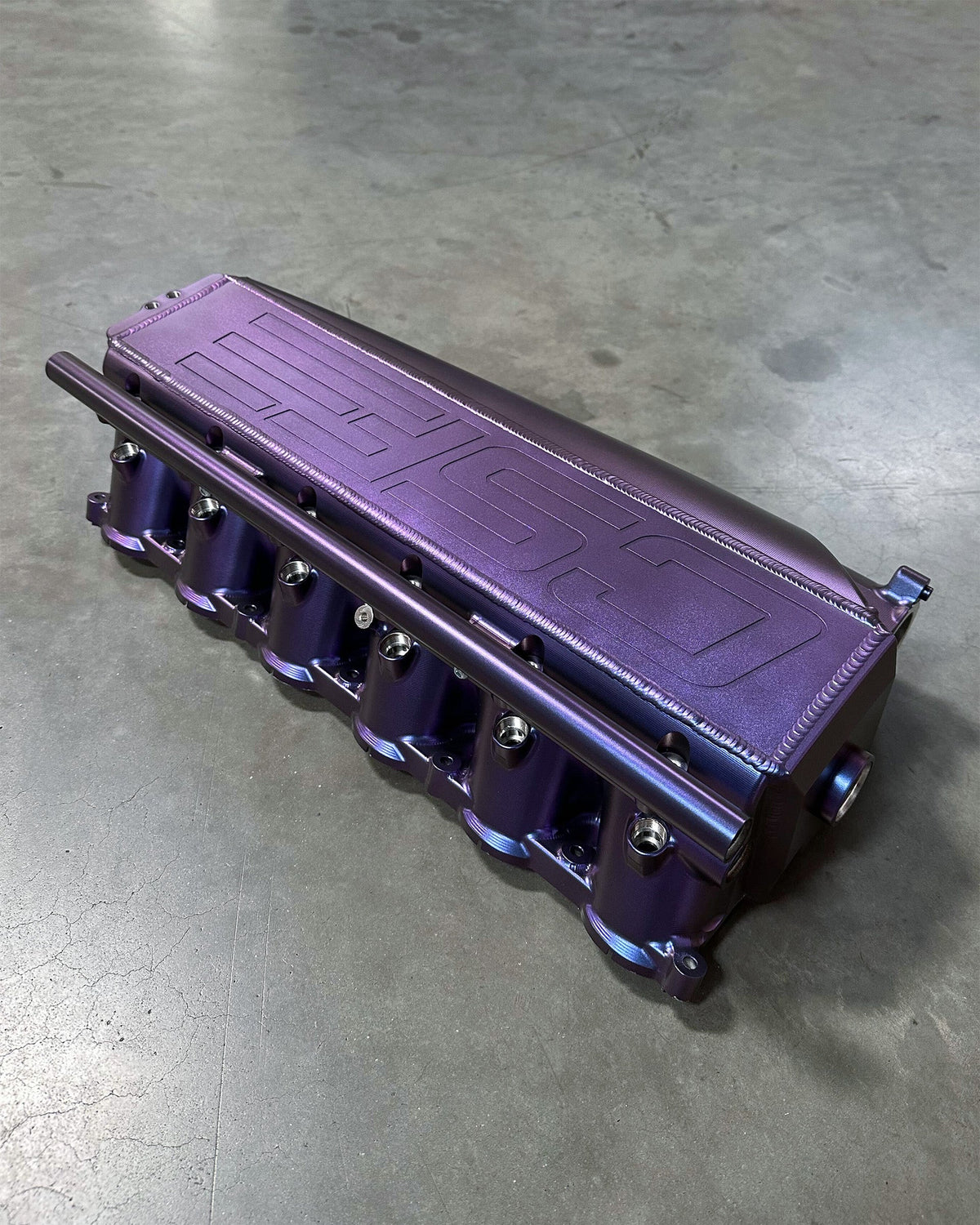

| Finish | Custom Finish |
Fitment and configuration: Does not fit B58N / B58TU2 / B58B30M2 or applications using the newer 11617952861 manifold. Port-injection block-off bungs are not included. 48V mild-hybrid installations require significant cylinder-head/alternator clearance modifications and an additional 8200S spacer; this is not a direct fit for that configuration.
Vehicle applications
| Years | Vehicle | Engine / transmission | Notes |
|---|---|---|---|
| 2020-2023 | BMW G30 540i | Turbocharged 3.0L L6 | — |
| 2020-2023 | BMW G30 540i xDrive | Turbocharged 3.0L L6 | — |
| 2018-2022 | BMW G11 740i | Turbocharged 3.0L L6 | — |
| 2018-2022 | BMW G11 740i xDrive | Turbocharged 3.0L L6 | — |
| 2020-2022 | BMW G11 745e | Turbocharged 3.0L L6 | — |
| 2020-2022 | BMW G11 745e xDrive | Turbocharged 3.0L L6 | — |
| 2020-2025 | BMW G14/G15 840i | Turbocharged 3.0L L6 | — |
| 2020-2025 | BMW G14/G15 840i Gran Coupe | Turbocharged 3.0L L6 | — |
| 2020-2025 | BMW G14/G15 840i xDrive | Turbocharged 3.0L L6 | — |
| 2020-2025 | BMW G14/G15 840i xDrive Gran Coupe | Turbocharged 3.0L L6 | — |
| 2023-2026 | BMW G42 M240i | Turbocharged 3.0L L6 | — |
| 2022-2026 | BMW G42 M240i xDrive | Turbocharged 3.0L L6 | — |
| 2020-2024 | BMW G20 M340i | Turbocharged 3.0L L6 | — |
| 2020-2024 | BMW G20 M340i xDrive | Turbocharged 3.0L L6 | — |
| 2021-2024 | BMW G22/G23 M440i | Turbocharged 3.0L L6 | — |
| 2022-2024 | BMW G26 M440i Gran Coupe | Turbocharged 3.0L L6 | — |
| 2021-2024 | BMW G22/G23 M440i xDrive | Turbocharged 3.0L L6 | — |
| 2022-2024 | BMW G26 M440i xDrive Gran Coupe | Turbocharged 3.0L L6 | — |
| 2020-2024 | BMW G01 X3 M40i | Turbocharged 3.0L L6 | — |
| 2020-2025 | BMW G02 X4 M40i | Turbocharged 3.0L L6 | — |
| 2020-2023 | BMW G05 X5 sDrive40i | Turbocharged 3.0L L6 | — |
| 2019-2022 | BMW G05 X5 xDrive40i | Turbocharged 3.0L L6 | — |
| 2021-2023 | BMW G05 X5 xDrive45e | Turbocharged 3.0L L6 | — |
| 2020-2021 | BMW G06 X6 sDrive40i | Turbocharged 3.0L L6 | — |
| 2020-2023 | BMW G06 X6 xDrive40i | Turbocharged 3.0L L6 | — |
| 2019-2023 | BMW G07 X7 xDrive40i | Turbocharged 3.0L L6 | — |
| 2019-2026 | BMW G29 Z4 M40i | Turbocharged 3.0L L6 | — |
| 2024 | Toyota GR Supra 45th Anniversary Edition | Turbocharged 3.0L L6 | — |
| 2023 | Toyota GR Supra A91-MT Edition | Turbocharged 3.0L L6 | — |
| 2023 | Toyota GR Supra | Turbocharged 3.0L L6 | — |
| 2020-2026 | Toyota GR Supra | Turbocharged 3.0L L6 | — |
| 2023 | Toyota GR Supra Premium | Turbocharged 3.0L L6 | — |
| 2024-2026 | Toyota GR Supra Premium | Turbocharged 3.0L L6 | — |
| 2024 | Toyota GR Supra Premium 45th Anniversary Edition | Turbocharged 3.0L L6 | — |
| 2026 | Toyota GR Supra | Turbocharged 3.0L L6 | — |
| 2026 | Toyota GR Supra MkV Final Edition | Turbocharged 3.0L L6 | — |
| 2024-2026 | INEOS Grenadier | Turbocharged 3.0L L6 | — |
| 2024-2026 | INEOS Grenadier Fieldmaster | Turbocharged 3.0L L6 | — |
| 2024-2026 | INEOS Grenadier Trialmaster | Turbocharged 3.0L L6 | — |
| 2025-2026 | INEOS Grenadier Quartermaster | Turbocharged 3.0L L6 | — |
| 2025-2026 | INEOS Grenadier Quartermaster Fieldmaster | Turbocharged 3.0L L6 | — |
| 2025-2026 | INEOS Grenadier Quartermaster Trialmaster | Turbocharged 3.0L L6 | — |
Product FAQs
Will Race X fit a B58N or B58TU2 engine?
No. The listed exclusion includes B58N, B58TU2 and B58B30M2. Check the original manifold reference and engine configuration, not just the vehicle badge.
Are port-injection block-off bungs included?
No. Plan supplemental injectors or separately sourced compatible bungs. The included fuel rail does not include injectors.
Is installation straightforward on a 48V mild hybrid?
No. CSF specifies significant clearance work at the cylinder head and alternator plus an additional 8200S spacer. The spacer alone does not resolve the installation.
Related CSF cooling products
- CSF 8200S B58 Intake Manifold Thermal Rejection Spacer
- CSF 8154 Toyota GR Supra / BMW G-Series Front Heat Exchanger
Pit Garage is an automotive service and performance parts shop in the Los Angeles area. Ask Pit Garage about selecting this manifold configuration for your engine, transmission and installed equipment.
